Professional 3D-DNR 1080P Surveillance Camera With EN771T Processor LN-802
  • name
  • name
  • name

Professional 3D-DNR 1080P Surveillance Camera With EN771T Processor LN-802

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 Working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-802
Imaging Platform:
- EN771T Processor - MN34227 Sensor Interface - 1/3" Panasonic CMOS
Performance:
- 1080P @ 30fps - True WDR (120dB+) - 3D-DNR
Optical System:
- 3.6mm Fixed Or 2.8-8mm Motorized - 40m IR With 18 LEDs - Auto ICR Filter
Installation:
- POC Support Optional - IP67 Metal Housing - -30°C To +60°C Operation
Highlight:

EN771T Processor 1080P surveillance Camera

,

3D-DNR 1080P surveillance Camera

,

EN771T Processor outdoor 1080p camera

Product Description

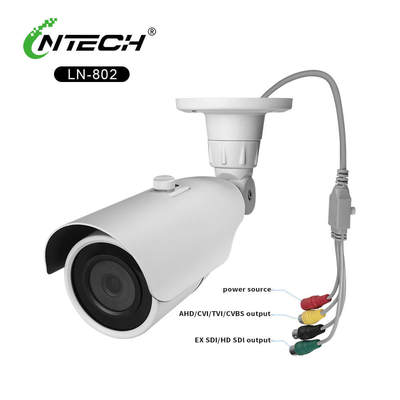

LN-802 Professional Surveillance Camera

Model: LN-802 | Platform: EN771T+MN34227 | Resolution: 1080P | IR: 40m | Rating: IP67 | Version: V2.1

Professional-grade outdoor camera featuring advanced EN771T+MN34227 imaging platform, 40m infrared capability, and flexible installation options.

1.0 Key Technical Features
Section Key Attributes
Imaging Platform - EN771T Processor
- MN34227 Sensor Interface
- 1/3" Panasonic CMOS
Performance - 1080P @ 30fps
- True WDR (120dB+)
- 3D-DNR
Optical System - 3.6mm fixed or 2.8-8mm motorized
- 40m IR with 18 LEDs
- Auto ICR filter
Installation - POC support optional
- IP67 metal housing
- -44°C to +60°C operation
2.0 Technical Documentation
2.1 Imaging Platform Overview

The LN-802 utilizes the EN771T advanced image processor working with the MN34227 sensor control system. This combination provides:

  • Superior image processing capabilities
  • Advanced wide dynamic range performance
  • Enhanced low-light sensitivity
  • Reduced power consumption
2.2 Optical Specifications
  • Fixed Lens Option: 3.6mm focal length, 80° viewing angle
  • Motorized Zoom Option: 2.8-8mm motorized zoom, remote controllable
  • IR System: 18 high-efficiency SMD LEDs, 40m effective range
  • Day/Night: Automatic ICR filter with smart switching
2.3 Advanced Features
  • WDR Technology: True wide dynamic range for high-contrast scenes
  • 3D-DNR: Spatial-temporal noise reduction
  • Smart IR: Automatic IR intensity control to prevent over-exposure
  • POC Support: Optional power over coaxial cable implementation
2.4 Physical Integration
  • Housing: Aluminum alloy construction with thermal management
  • Mounting: Standard bracket with 3-axis adjustment
  • Weatherproofing: IP67 certified against dust and water
  • Power Options: DC 12V or optional POC implementation
3.0 Comprehensive Specification Table
Category Parameter Specification
Image Processing Main Chipset EN771T + MN34227
  Maximum Resolution 1920×1080 (1080P)
  Frame Rate 30fps at full resolution
  Video Output AHD/TVI/CVI/CVBS
Lens System Standard Option 3.6mm fixed lens
  Premium Option 2.8-8mm motorized zoom
  IR Distance 40 meters
  IR LEDs 18 × SMD type
Image Features WDR True Wide Dynamic Range
  DNR 3D Digital Noise Reduction
  Minimum Illumination 0.01 lux (color)
  Day/Night Auto ICR filter
Physical Housing Material Aluminum alloy
  Protection Rating IP67
  Dimensions 150×85×70mm
  Weight 550g
  Color Options Black/White
Environmental Operating Temperature -44°C to +60°C
  Weather Resistance Designed for outdoor use
Power Input Voltage DC 12V ±20%
  Power Consumption 5W max (IR on)
  POC Support Optional
