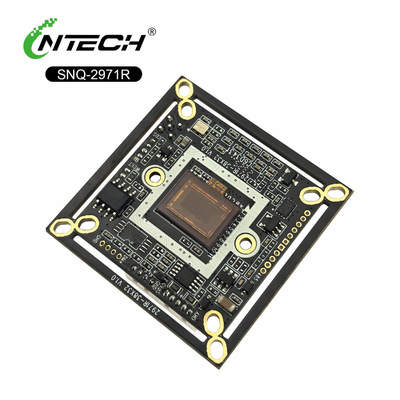

Lntech 2971R 38x32mm Starlight SDI Camera Module with Auto Focus

Standard Packaging: Carton package
Delivery Period: 7-15 working days
Payment Method: ,T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Model Number
LM-2971R
Model:
2971R
Sensor:
Sony IMX307 STARVIS (1/2.8")
Resolution:
1080P @ 120fps
Output:
6-in-1: AHD / TVI / CVI / EX-SDI / HD-SDI / CVBS
Lens:
Motorized Zoom & Auto Focus
Key Tech:
Starlight, WDR, 3D-DNR, Defog
Size:
38mm X 32mm (Compact)
Control:
Coaxial OSD, RS485
Highlight:

Starlight camera module with auto focus

,

4K camera module 38x32mm

,

Lntech 2971R camera module

Product Description
Lntech 2971R 38x32mm Starlight SDI Camera Module with Auto Focus
Product Specifications
Attribute Value
Model 2971R
Sensor Sony IMX307 STARVIS (1/2.8")
Resolution 1080P @ 120fps
Output 6-in-1: AHD / TVI / CVI / EX-SDI / HD-SDI / CVBS
Lens Motorized Zoom & Auto Focus
Key Tech Starlight, WDR, 3D-DNR, Defog
Size 38mm x 32mm (Compact)
Control Coaxial OSD, RS485
Product Overview

The Lntech 2971R is a compact 38x32mm 6-in-1 multi-format starlight camera module with auto focus capability. This advanced camera core combines the renowned Sony IMX307 Starlight sensor with flexible output options, making it ideal for designing slim, high-performance surveillance cameras.

Key Features
  • Ultra-compact 38x32mm PCB design for discreet camera applications
  • Sony IMX307 Starlight sensor for exceptional low-light performance
  • Configurable 6-in-1 output (AHD/TVI/CVI/EX-SDI/HD-SDI/CVBS)
  • Motorized auto-focus lens with zoom control
  • Advanced image processing: WDR, 3D-DNR, and Defog
  • Coaxial OSD and RS485 control interfaces
Technical Specifications
Image Sensor Sony IMX307, 1/2.8 Inch, 2.9µm Pixels
Max Resolution 1920 x 1080 (1080P Full HD)
Max Frame Rate 120fps (Sensor Capability)
Video Output Selectable Single Output: EX-SDI, AHD, TVI, CVI, CVBS, HD-SDI
Lens Control Motorized Auto Focus (3x/4x/8x), Motorized Zoom
Low Light Technology Starlight Level Sensitivity, Frame Accumulation
WDR Ultra Wide Dynamic Range
Noise Reduction 3D Digital Noise Reduction (3D DNR)
Special Features Defog, Strong Light Inhibition (HLI), Back Light Compensation (BLC), Mirror, Flip, Privacy Masking, Digital Zoom
Day/Night Automatic IR-CUT Filter (CDS sensor), External Trigger Support
Control Interface Coaxial OSD Menu (Dahua-style compatible), RS485 (N485 connector)
PCB Dimensions 38mm x 32mm x 1.6mm
Power Supply DC 12V (±10%)
Applications

Ideal for OEMs, ODMs, and system integrators developing compact surveillance solutions including mini domes, bullet cameras, and discreet security systems. Suitable for safe city projects, traffic monitoring, and high-end home security applications.

38x32mm camera module, compact camera board, 6-in-1 output, AHD module, TVI module, CVI module, EX-SDI module, Sony IMX307 starlight sensor, auto focus board, camera engine, ODM camera core, security camera component, mini camera module
