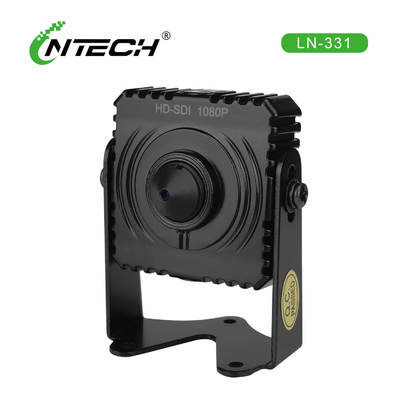

LN-331 2MP Ultra Mini Camera Small SDI Camera Low Power Standard Mounting
  • name
  • name

LN-331 2MP Ultra Mini Camera Small SDI Camera Low Power Standard Mounting

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-331
Miniaturization:
- 39×39×31mm Dimensions - 50 Gram Weight - World's Smallest Form Factor
Imaging Performance:
- 2MP (1080P @ 30fps) - WDR And 3D-DNR - 3.7mm Optimized Lens
Environmental:
- IP67 Metal Housing - Complete Environmental Protection - Black Finish
Integration:
- Optional POC Support - Low Power Consumption - Standard Mounting
Highlight:

Standard mounting Ultra Mini Camera

,

Ultra Mini Camera Low power

,

Standard mounting Small SDI Camera

Product Description
LN-331 Ultra-Mini Camera Module

Model: LN-331 | Size: 39×39×31mm | Weight: 50g | Resolution: 2MP | Rating: IP67

The world's smallest full-featured camera module with 2MP resolution, IP67 protection, and optional POC support.

1.0 Key Technical Features
Section Key Attributes
Miniaturization - 39×39×31mm dimensions
- 50 gram weight
- World's smallest form factor
Imaging Performance - 2MP (1080P @ 30fps)
- WDR and 3D-DNR
- 3.7mm optimized lens
Environmental - IP67 metal housing
- Complete environmental protection
- Black finish
Integration - Optional POC support
- Low power consumption
- Standard mounting
2.0 Technical Documentation
2.1 Overview

The LN-331 represents the ultimate achievement in surveillance miniaturization, packing complete 2MP imaging capability into a 39×39×31mm package with full IP67 environmental protection.

2.2 Miniaturization Breakthrough

  • Dimensions: 39mm × 39mm × 31mm (L×W×H)

  • Weight: 50 grams (including housing and optics)

  • Integration: Complete camera system in minimal space

  • Comparison: Smaller than most traditional camera lenses

2.3 Imaging Capabilities

  • Resolution: 2MP with 1080P @ 30fps output

  • Sensor: 1/3" Panasonic CMOS for high sensitivity

  • Processing: EN771T + MN34227 for advanced features

  • Lens: 3.7mm fixed focal length optimized for size

2.4 Environmental Specifications

  • IP67 Rating: Complete dust and water immersion protection

  • Metal Housing: Aluminum construction for durability and cooling

  • Temperature Range: -20°C to +60°C operation

  • Finish: Black anodized for corrosion resistance

3.0 Comprehensive Specification Table
Category Parameter Specification
Physical Dimensions 39 × 39 × 31 mm
  Weight 50 g
  Material Metal
  Color Black
Environmental Protection IP67
  Operating Temp -20°C to +60°C
Imaging Sensor 1/3" Panasonic CMOS
  Processor EN771T + MN34227
  Resolution 1080P @ 30fps
  Lens 3.7mm fixed
Features WDR Supported
  3D-DNR Supported
  POC Optional
  Digital Zoom Supported
Electrical Power DC 12V or POC
  Consumption <1.5W
4.0 Applications & Resources
4.1 Typical Applications
  • Hidden surveillance system
  • Micro unmanned aircraft and robot vision
  • Automobiles and Transportation Systems
  • Medical and scientific instruments
  • Portable safety equipment
  • Industrial micro-sensing system
4.2 Technical Resources

  •
