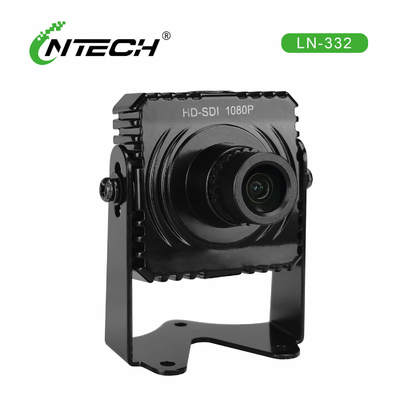

LN-332 Mini SDI Camera 200MP 1080P WDR 3D-DNR High Definition

Review LN-332 camera module specifications: 200MP, 1080P, 1/3" CMOS, 3.7mm lens, Metal housing, IP67, WDR, 3D-DNR. Download resources for integration.

Model: LN-332 | Platform: EN771T + MN34227 | Housing: Metal, IP67 | Size: 39x39x31mm

A 200MP high-definition camera module with a metal housing and IP67 environmental protection. Features WDR, 3D-DNR, and optional POC support.

The LN-332 is a high-resolution camera module based on the EN771T processor and MN34227 sensor combination. It is designed for applications requiring a durable build and reliable performance in various environmental conditions. The metal housing and IP67 rating make it suitable for outdoor use.

• Resolution: Provides clear video at 1080P (30fps) or 720P (30fps).

• Low Light & Noise Reduction: 3D-DNR technology minimizes noise for a clearer picture.

• Dynamic Range: WDR technology ensures usable video in scenes with contrasting bright and dark areas.

• Additional Enhancements: Includes features like HLC (Highlight Compensation), BLC (Backlight Compensation), and Defog for improved image quality in challenging scenarios.

• POC (Power Over Coaxial): This functionality is optional, allowing for integration into systems that support power and video transmission over a single coaxial cable.

• Monitoring Features: Supports Motion Detection triggers and configuration of Privacy Masking zones to block out sensitive areas within the video frame.

• Control: Adjustable via an On-Screen Display (OSD) menu.

• Material: Constructed from metal for enhanced durability and heat management.

• Environmental Protection: Rated IP67, offering complete dust protection and resistance to water immersion.

• Dimensions: Compact form factor measuring 39mm x 39mm x 31mm.

• Weight: Lightweight at approximately 50 grams.

Contact us for OEM pricing and technical specifications.
