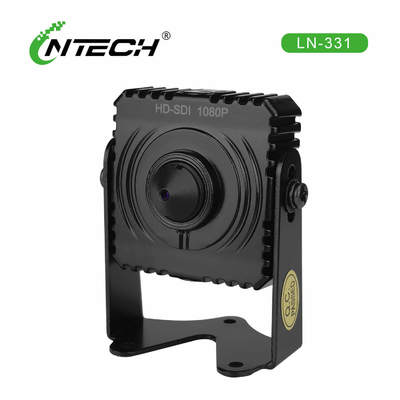

LN-331 Smallest 2MP Surveillance Camera 39×39×31mm High Resolution
  • name
  • name

LN-331 Smallest 2MP Surveillance Camera 39×39×31mm High Resolution

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-331
Size & Weight:
39×39×31mm / 50g
Resolution:
2MP (1080P @ 30fps)
Environmental:
IP67 Metal Housing
POC Support:
Optional
Key Features:
WDR, 3D-DNR, Digital Zoom
Ideal For:
Concealed Mounting, Miniaturized Devices
Highlight:

High Resolution 2MP Surveillance Camera

,

Smallest 2MP Surveillance Camera

,

High Resolution 2MP Mini Camera

Product Description
LN-331 Ultra-Mini Camera Module: Big Performance in The World's Smallest Package
Revolutionary 39×39×31mm Design with Full-Featured 2MP Imaging and IP67 Protection

The Lntech LN-331 redefines miniaturization in surveillance technology. Measuring just 39×39×31mm and weighing only 50 grams, this ultra-compact camera module delivers exceptional 2MP resolution without compromising on features. Despite its tiny footprint, it incorporates a 1/3" Panasonic CMOS sensor and EN771T processor to provide 1080P resolution at 30fps with advanced WDR and 3D-DNR capabilities. The IP67-rated metal housing ensures complete environmental protection, while optional POC support enables power and video transmission over a single cable. Perfect for applications where space is critical but performance cannot be compromised.

Quick Specification Overview
Feature LN-331 Specification Advantage
Size & Weight 39×39×31mm / 50g World's smallest form factor
Resolution 2MP (1080P @ 30fps) Full HD in miniature package
Environmental IP67 Metal Housing Maximum protection in tiny size
POC Support Optional Single-cable solution for easy installation
Key Features WDR, 3D-DNR, Digital Zoom Professional features in miniature form
Ideal For Concealed Mounting, Miniaturized Devices Where space is absolutely critical
Why Choose the LN-331?

1. Unmatched Miniaturization
At 39×39×31mm and 50 grams, the LN-331 is one of the smallest full-featured cameras available, enabling installation in spaces previously impossible for surveillance equipment.

2. Professional Performance
Despite its size, the camera delivers:

  • 2MP resolution with 1080P output at 30fps
  • True WDR for high-contrast scenes
  • 3D-DNR for superior low-light performance
  • Digital zoom for detailed inspection

3. Robust Construction
The IP67-rated metal housing provides:

  • Complete protection against dust and water immersion
  • Enhanced heat dissipation for reliable operation
  • Durability in harsh environments despite small size

4. Installation Flexibility

  • Optional POC support simplifies wiring in space-constrained installations
  • Standard 3.7mm lens provides optimal field of view for most applications
  • Multiple mounting options for flexible integration
Complete Technical Specifications
Parameter Specification
Model LN-331
Dimensions 39mm × 39mm × 31mm
Weight 50 grams
Image Sensor 1/3" Panasonic CMOS
Processor EN771T + MN34227
Resolution 1080P @ 30fps, 720P @ 30fps
Lens 3.7mm fixed
POC Support Optional
WDR Supported
3D-DNR Supported
Digital Zoom Supported
OSD Menu Supported
Motion Detection Supported
Privacy Masking Supported
HLC/BLC Supported
Weatherproof Rating IP67
Housing Material Metal
Color Black
Power Supply DC 12V or POC (optional)
Tags:

small sdi camera,

1080p sdi camera,

sdi security camera
