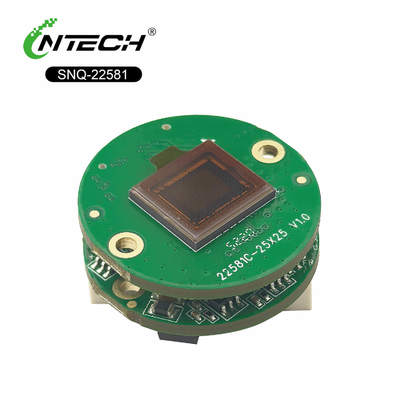

SNQ-22581 720P CVBS Camera Module With IMX225 Starlight Sensor 1000TVL
  • name
  • name

SNQ-22581 720P CVBS Camera Module With IMX225 Starlight Sensor 1000TVL

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Model Number
SNQ-22581
Sensor & Resolution:
Sony IMX225 (1/3"), 720P / 1000TVL
Low Light Performance:
True Starlight (0.00008 Lux B/W), DSS
Key Advantage:
Excellent Low-Light Performance + 1000TVL At A Low Cost
Output Signal:
CVBS (Analog)
Size & Design:
25mm X 25mm, Double-Layer Board
Primary Use Case:
Analog System Upgrades, Budget OEM Products
Highlight:

720P CVBS Camera Module

,

720P Camera Module 1000TVL

,

1000TVL CVBS Camera Module

Product Description
SNQ-22581 720P Analog Camera Module: Starlight Performance, Unbeatable Value

Crystal-Clear 1000TVL Analog Video with Exceptional Low-Light Capability for Legacy Systems

Introducing the Lntech SNQ-22581, the smart choice for high-performance analog surveillance on a budget. This incredibly compact 25x25mm board packs the renowned Sony IMX225 STARVIS™ sensor, delivering exceptional starlight-level low-light performance (0.00008 Lux) that rivals more expensive solutions. It outputs a super-sharp 720P analog signal with 1000TVL resolution via standard CVBS interface, making it a direct, drop-in upgrade for any existing analog system. Experience significantly improved image quality, especially at night, without changing your DVRs or cabling. The SNQ-22581 is the ultimate cost-effective core for DIY security, budget-conscious OEMs, and anyone looking to breathe new life into their analog infrastructure.

Quick Module Selector Guide
Feature SNQ-22581 Specification Ideal Application
Sensor & Resolution Sony IMX225 (1/3"), 720P / 1000TVL Cost-Effective HD Analog Identification
Low Light Performance True Starlight (0.00008 Lux B/W), DSS Budget 24/7 Surveillance
Key Advantage Excellent Low-Light Performance + 1000TVL at a Low Cost Value-Driven Imaging
Output Signal CVBS (Analog) Direct Legacy System Upgrade
Size & Design 25mm x 25mm, Double-Layer Board Extremely Compact, Easy Integration
Primary Use Case Analog System Upgrades, Budget OEM Products Home Security, Cost-Sensitive Projects
Why Choose The SNQ-22581 Value Module?
1. Exceptional Starlight Low-Light on a Budget

Don't sacrifice night vision for cost. The Sony IMX225 sensor is famous for delivering outstanding low-light performance at an accessible price point. See clear images in environments with minimal light (0.00008 Lux in B/W mode), eliminating the need for expensive IR lighting in many scenarios.

2. Crystal-Clear 1000TVL Analog Video

Maximize the potential of your analog system. This module pushes the CVBS standard to its limits, delivering a remarkably detailed 1000-line image. This provides a noticeable upgrade in clarity and detail over standard 700TVL cameras, making object identification easier.

3. The Easiest System Upgrade Imaginable

If you have an old analog DVR and coaxial cables, this module is your plug-and-play upgrade path. Simply replace your old camera board with the SNQ-22581, and experience a dramatic improvement in image quality without any other changes to your system.

4. Ultra-Compact and Discreet

The tiny 25x25mm size allows for integration into very small and discreet housings. Its double-layer design ensures reliable performance in a minimal footprint, perfect for compact consumer products or discreet security devices.

5. Full Feature Set for Complete Control

Despite its low cost, it doesn't skimp on features. Control WDR (BLC/HLC), DNR, Sharpness, and One-Push White Balance through a comprehensive OSD menu, allowing you to fine-tune the image to your exact environment.

Complete Technical Specifications
Parameter Specification
Model SNQ-22581
Image Sensor 1/3" Sony IMX225 STARVIS CMOS
Effective Pixels 1305(H) x 977(V)
Scan System Progressive
Resolution 720P (Analog), 1000TVL
Video Output CVBS (1.0Vp-p, 75Ω)
Min. Illumination Color: 0.00017Lux, B/W: 0.00008Lux (DSS ON)
Lens Mount Board-level
Backlight Compensation BLC, HLC, WDR
Digital Noise Reduction 2D-DNR (Off / Low / Middle / High)
Day/Night Auto (ICR), Color, B/W
One-Push WB Yes
Digital Zoom Yes
Operating Voltage DC 12V (±10%)
Power Consumption < 0.96W (80mA) - Very Low Power
Board Dimensions 25mm x 25mm (Double-Layer Board)

Package Includes: 1x SNQ-22581 Camera Module, 1x Cable Set.

Upgrade your analog vision without breaking the bank. Order the SNQ-22581 today!

Tags:

full hd camera module,

high definition camera module,

machine vision camera module
