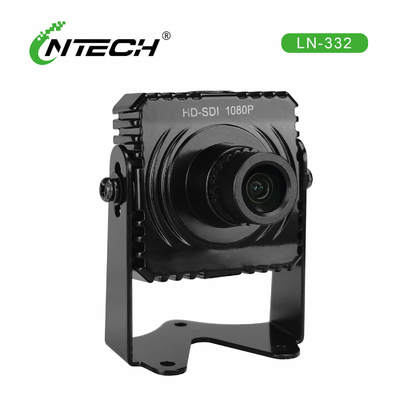

LN-332 Flat Head 2MP Mini Camera Compact Security Camera Flush Surface Mounting
  • name
  • name
  • name
  • name

LN-332 Flat Head 2MP Mini Camera Compact Security Camera Flush Surface Mounting

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-332
Design Profile:
- Flat-Head Configuration - Flush Surface Mounting - Minimal Visual Profile
Dimensions:
- 39×39×31mm Compact Size - 50 Gram Weight - Low-profile Design
Imaging Performance:
- 2MP (1080P @ 30fps) - WDR And 3D-DNR - 3.7mm Flat-head Lens
Environmental:
- IP67 Metal Housing - Complete Environmental Protection - Black Discreet Finish
Highlight:

Flush mounting 2MP Mini Camera

,

Flush mounting compact security camera

,

Flat Head compact security camera

Product Description
LN-332 Flat-Head Camera Module

Model: LN-332 | Design: Flat-Head | Size: 39×39×31mm | Resolution: 2MP | Rating: IP67

Ultra-compact flat-head camera module designed for discreet surveillance with flush surface mounting capability.

1.0 Key Technical Features
Section Key Attributes
Design Profile - Flat-Head Configuration
- Flush surface mounting
- Minimal visual profile
Dimensions - 39×39×31mm compact size
- 50 gram weight
- Low-profile design
Imaging Performance - 2MP (1080P @ 30fps)
- WDR and 3D-DNR
- 3.7mm flat-head lens
Environmental - IP67 metal housing
- Complete environmental protection
- Black discreet finish
2.0 Technical Documentation
2.1 Overview

The LN-332 flat-head camera module offers the ultimate in discreet surveillance with its streamlined design that allows flush mounting against surfaces while maintaining full 2MP imaging performance.

2.2 Flat-Head Design Advantages
  • Surface Integration: Flush mounting against walls and ceilings
  • Reduced Visibility: Minimal visual detection in installed state
  • Protected Lens: Recessed design for enhanced durability
  • Architectural Blending: Designed to blend with surfaces and trim
2.3 Imaging Capabilities
  • Resolution: 2MP with 1080P @ 30fps output
  • Sensor: 1/3" Panasonic CMOS for high sensitivity
  • Processing: EN771T + MN34227 for advanced features
  • Lens: 3.7mm fixed focal length in flat-head configuration
2.4 Installation Specifications
  • IP67 Rating: Complete dust and water immersion protection
  • Mounting: Surface mount with flush installation
  • Temperature Range: -20°C to +60°C operation
  • Finish: Black for minimal visual impact
3.0 Comprehensive Specification Table
Category Parameter Specification
Physical Dimensions 39 × 39 × 31 mm
  Weight 50 g
  Design Flat-Head Configuration
  Material Metal
  Color Black
Environmental Protection IP67
  Operating Temp -20°C to +60°C
Imaging Sensor 1/3" Panasonic CMOS
  Processor EN771T + MN34227
  Resolution 1080P @ 30fps
  Lens 3.7mm flat-head
Features WDR Supported
  3D-DNR Supported
  POC Optional
  Digital Zoom Supported
Electrical Power DC 12V or POC
  Consumption <1.5W
4.0 Applications & Resources
4.1 Typical Applications
  • Discreet corporate surveillance
  • Retail loss prevention
  • Hospitality security
  • Residential discreet monitoring
  • Executive protection
  • High-end architectural security
4.2 Technical Resources
  •
Tags:

small sdi camera,

1080p sdi camera,

sdi security camera
