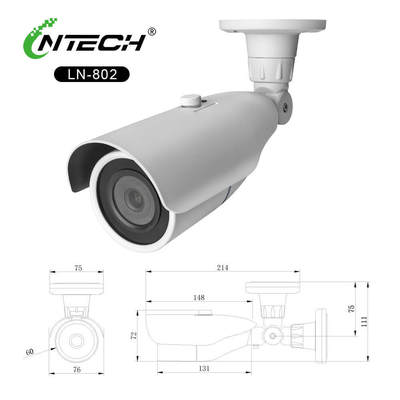

EN771T+MN34227 Imaging Platform 40m IR Security Camera Outdoor Waterproof Camera

The LN-802 represents a technical achievement in surveillance imaging, combining the EN771T advanced signal processor with the MN34227 high-sensitivity sensor in a robust outdoor housing. This technical partnership enables exceptional image quality through sophisticated processing algorithms and precision sensor control, delivering 1080P resolution with true WDR capability and superior low-light performance.

1. EN771T Processing Capabilities
The EN771T system-on-chip represents the core of the camera's imaging performance:

• True WDR Processing: Utilizes multi-exposure technology to achieve over 120dB dynamic range
• 3D-DNR Implementation: Spatial-temporal noise reduction without motion artifacts
• Advanced Encoding: Optimized compression algorithms for bandwidth efficiency
• Smart Features: Integrated motion detection, privacy masking, and digital zoom

2. MN34227 Sensor Performance
The MN34227 sensor interface combined with 1/3" Panasonic CMOS delivers:

• High Sensitivity: Exceptional low-light performance down to 0.01 lux
• Low Noise: Advanced pixel technology for clean image reproduction
• Precision Control: Fine-tuned exposure and gain management
• Color Accuracy: Natural color reproduction across varying lighting conditions

3. Optical and IR Engineering

• Motorized Zoom Option: Precision 2.8-8mm motorized lens with silent operation
• IR Optimization: Smart IR cut filter with automatic day/night switching
• Lens Quality: Multi-element glass construction for minimal distortion

4. Environmental Durability

• IP67 Certification: Complete protection against dust and water immersion
• Metal Construction: Aluminum alloy housing for heat dissipation and impact resistance
• Thermal Management: Designed for operation from -44°C to +60°C
