PRODUCTS DETAILS

Home > Products >

Compact Mini Security Camera Weatherproof Flexible Installation

Products

Compact Mini Security Camera Weatherproof Flexible Installation

MOQ:	1
Standard Packaging:	Carton
Delivery Period:	7-15 working days
Payment Method:	T/T
Supply Capacity:	2500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Lntech

Certification

CE ISO

Model Number

LN-348

Imaging:

- 1080P @ 30fps - 1/3" Panasonic CMOS - WDR And 3D-DNR

Design:

- IP67 Metal Housing - Compact: φ23×79.5mm - Discrete Black Finish

Functionality:

- Optional POC Support - Motion Detection - Privacy Masking

Highlight:

Mini Security Camera Weatherproof

flexible installation Mini Security Camera

flexible installation mini surveillance camera

Product Description

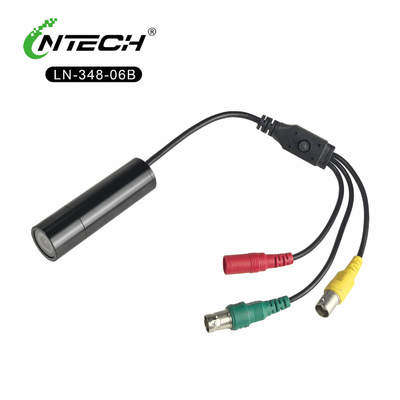

LN-348 Mini Dome Camera

Model: LN-348 | Resolution: 1080P | Sensor: 1/3" Panasonic CMOS | Weatherproof: IP67 | Version: V1.0

A compact and durable mini dome camera with 1080P resolution, IP67 rating, and optional POC support for flexible installation.

1.0 Key Features at a Glance

Section	Key Attributes
Imaging	- 1080P @ 30fps - 1/3" Panasonic CMOS - WDR and 3D-DNR
Design	- IP67 Metal Housing - Compact: φ23×79.5mm - Discrete Black Finish
Functionality	- Optional POC Support - Motion Detection - Privacy Masking

2.0 Detailed Product Information

2.1 Description

The LN-348 is a mini dome camera designed for discrete surveillance in both indoor and outdoor environments. It offers 1080P resolution, robust metal construction, and advanced features such as WDR and optional POC support.

2.2 Applications

Retail and hospitality monitoring
Residential security
Office and corporate environments
Outdoor eaves and entryways

2.3 POC Support

Optional Power over Coax allows the camera to be powered and receive video over a single coaxial cable, simplifying installation and reducing costs.

2.4 Physical Installation

Dimensions: φ23 × 79.5mm
Weight: 80g
Housing: Metal, IP67-rated
Power: DC 12V or POC

3.0 Comprehensive Specification Table

Group	Parameter	Specification
General	Model	LN-348
	Sensor	1/3" Panasonic CMOS
	Processor	EN771T + MN34227
Video	Resolution	1080P @ 30fps
	Lens	3.6mm fixed
Features	WDR	Supported
	3D-DNR	Supported
	POC	Optional
	Motion Detection	Supported
	Privacy Masking	Supported
Mechanical	Housing	Metal
	Weatherproof	IP67
	Dimensions	φ23 × 79.5mm
	Weight	80g
Electrical	Power	DC 12V or POC

4.0 Resources
