LN-330 8.29MP 4K Broadcast Camera Rugged Design 4k Live Streaming Camera
  • name
  • name
  • name

LN-330 8.29MP 4K Broadcast Camera Rugged Design 4k Live Streaming Camera

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-330
Imaging:
- 1/1.8" CMOS Sensor - 4K Resolution @ 60fps - Low Light: 0.59 Lux (Color)
Output:
- HDMI & EX-SDI Outputs - Support For 1080p And 2160p
Processing:
- 3D-DNR, WDR, DEFOG - Digital Zoom, Privacy Mask
Design:
- Compact Metal Housing - Wide Operating Temperature (-20°C To +80°C)
Highlight:

8.29MP 4K Broadcast Camera

,

Rugged 4k Live Streaming Camera

,

Rugged Design 4K Broadcast Camera

Product Description

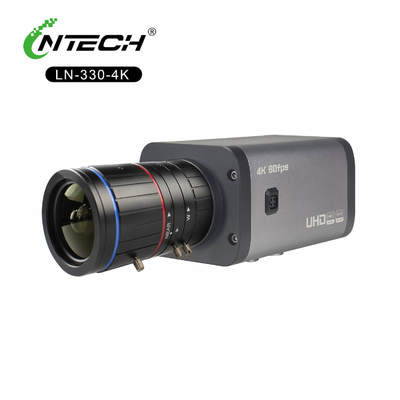

LN-330 4K Broadcast Camera

Model: LN-330 | Sensor: 1/1.8" CMOS | Resolution: 4K (8.29MP) | Outputs: HDMI, EX-SDI | Version: V1.0

A professional 4K broadcast camera with HDMI and EX-SDI outputs, advanced image processing, and rugged design for broadcasting, live streaming, and video production.

1.0 Key Features at a Glance
Section Key Attributes
Imaging - 1/1.8" CMOS Sensor
- 4K Resolution @ 60fps
- Low Light: 0.59 lux (Color)
Output - HDMI & EX-SDI Outputs
- Support for 1080p and 2160p
Processing - 3D-DNR, WDR, DEFOG
- Digital Zoom, Privacy Mask
Design - Compact Metal Housing
- Wide Operating Temperature (-20°C to +80°C)
2.0 Detailed Product Information
2.1 Description

The LN-330 is a high-performance 4K broadcast camera designed for professional use in studios, live events, and outdoor broadcasting. It features a high-resolution sensor, dual video outputs, and a suite of image enhancement technologies to ensure superior video quality under varying conditions.

2.2 Applications
  • Television and radio broadcasting
  • Live event streaming and recording
  • Sports and concert venues
  • Distance learning and lecture capture
  • Corporate and religious streaming
2.3 Output Options
  • HDMI: For direct connection to displays or capture devices.
  • EX-SDI: For integration into broadcast infrastructure and long-distance signal runs.
2.4 Physical Installation
  • Dimensions: 73mm × 71mm × 140mm
  • Weight: 0.42 kg
  • Mounting: 1/4" screw holes (正向/反向安装)
  • Power: 12V DC (±10%), 620mA typical
3.0 Comprehensive Specification Table
Group Parameter Specification
General Model LN-330
  Sensor 1/1.8" CMOS
  Resolution 8.29 MP (3840×2160)
Video Output HDMI, EX-SDI
  Frame Rate 60/50/30/25fps
  Lens Mount C-CS Auto Iris
Image Min. Illumination 0.59 lux (Color), 0.33 lux (B&W)
  DNR 3D-DNR (Off/Low/Mid/High)
  WDR Yes
  DEFOG Yes
  Digital Zoom Yes
Electrical Power DC 12V ±10%
  Current 620mA
Environmental Operating Temp -20°C to +80°C
  Humidity 0–90% RH
Mechanical Dimensions 73mm × 71mm × 140mm
  Weight 0.42 kg
4.0 Resources
  •
