LN330-4K30F 8MP Camera Module 3840x2160 Resolution 3G-SDI And HDMI Output

Get all details on the LN330-4K30F 8MP module. 1/1.8" sensor, 4K video over SDI/HDMI, 0.33Lux sensitivity. Access full specs, wiring diagrams, and manual. Designed for straightforward OEM integration.

Model: LN330-4K30F | Sensor: 1/1.8" 8.29MP CMOS | Output: 3G-SDI & HDMI

This document provides all necessary information for evaluating and integrating the Lntech LN330-4K30F 4K camera module into your product or system.

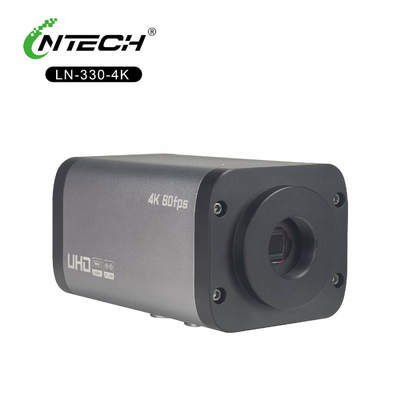

The LN330-4K30F is a self-contained camera engine that outputs ultra-high-definition 4K video. It is designed as a core component for Original Equipment Manufacturers (OEMs) and system integrators in the professional video and security industries.

The module is built around a 1/1.8-inch CMOS image sensor. This sensor provides a maximum resolution of 3840 horizontal by 2160 vertical pixels, resulting in a detailed 4K image. The scan system is progressive, which is essential for capturing fast-moving objects without interlacing artifacts.

• 3G-SDI Output: This BNC connector provides a broadcast-standard video signal. It supports long cable runs and is ideal for professional installations. In 4K mode, it uses the EX-SDI (3G-SDI Level B) protocol.

• HDMI Output: This connector provides a consumer-standard digital video signal, perfect for connecting directly to monitors, televisions, or HDMI capture cards.

• The module outputs video on both connectors simultaneously, providing maximum installation flexibility.

• Day/Night Mode: The module can automatically switch between color and high-sensitivity monochrome mode using an ICR filter. This can be set to Auto, forced Color, forced B/W, or triggered externally.

• Image Adjustment: A wide range of parameters can be adjusted via the OSD, including Brightness, Sharpness, Digital Noise Reduction (2D-DNR), and Defog (DEGE DET).

• Dimensions: The unit measures 73mm in width, 73mm in height, and 140mm in length.

• Mounting: A standard 1/4"-20 UNC threaded hole on the base allows for easy mounting on tripods or brackets.

• Orientation: The module can be installed in upright or inverted (ceiling) positions.

• Power Input: Connect a 12V DC, ±10% power supply to the designated terminals. Ensure the power supply can provide at least 1A of current.

• Video Output: Connect SDI and HDMI cables to your recording or monitoring equipment.

• Control Cable: Connect the provided cable's RS-485 data lines to your controller or DVR for full OSD menu control.

For further technical assistance or to discuss custom modifications, please contact our engineering support team.
