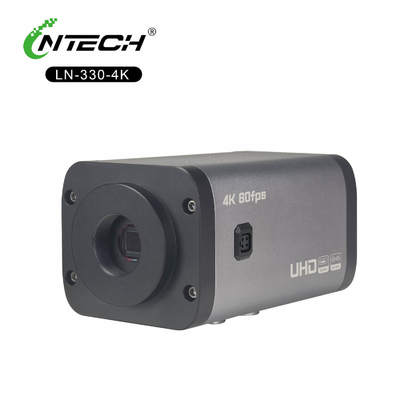

LN330-4K30F 4K Camera Module 8.29MP Resolution 0.33Lux Low Light

LN330-4K30F 4K Camera Module 8.29MP Resolution 0.33Lux Low Light

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Place of Origin
China
Brand Name
Lntech
Model Number
LN330
Imaging Core:
1/1.8" CMOS Sensor, 8.29M Effective Pixels
Video Output:
3G-SDI & HDMI (Simultaneous)
Max Resolution/Framerate:
3840x2160p @ 30fps, 1920x1080p @ 60fps
Sensitivity:
0.33 Lux (B/W Mode, ICR ON)
Lens Interface:
C/CS Mount With Auto Iris Drive
Control Interface:
RS-485 (Default) / LC-ARS, OSD Menu
Key Processing:
2D-DNR, Digital WDR, Defog, Privacy Masking
Robust Operation:
-20°C To +80°C Operating Temperature
Highlight:

4K Camera Module 8.29MP

,

0.33Lux 4K Camera Module

Product Description

Explore the LN330-4K30F 4K camera module specs: 1/1.8" CMOS, 8.29MP resolution, 4K30fps over SDI/HDMI, 0.33Lux low-light, auto-iris support. Download datasheets, manuals, and integration guides. Designed for professional systems.

LN330-4K30F Camera Module

Model: LN330-4K30F | Sensor: 1/1.8" 8.29MP CMOS | Output: 3G-SDI & HDMI

A high-resolution 8MP camera module delivering 4K/30fps video over dual 3G-SDI and HDMI outputs. Features exceptional 0.33Lux low-light sensitivity and a wide operating temperature range for professional integration.

1.0 Key Features at a Glance
Section Key Attributes
Imaging - 1/1.8" CMOS Sensor
- 8.29MP Resolution (3840x2160)
- 0.33 Lux (B/W) Low Light
- Progressive Scan
Output & Compatibility - Dual 3G-SDI & HDMI Output
- 4K30 / 1080p60 Resolutions
- EX-SDI support in 4K mode
Functionality - C/CS Mount with Auto Iris
- Auto Day/Night (ICR)
- 2D-DNR & Defog
- Privacy Masking
Integration & Control - Comprehensive OSD Menu
- RS-485/LC-ARS Control
- Wide Operating Temp. (-20°C ~ +80°C)
- Standard 1/4" Mount
2.0 Detailed Product Information
2.1 Description

The LN330-4K30F is a professional-grade camera module that captures ultra-high-definition video with 8.29 million effective pixels. It is built around a high-performance 1/1.8-inch CMOS sensor and is designed for reliability in a wide range of professional applications, including broadcast, live streaming, and high-end security. The module outputs video simultaneously via 3G-SDI and HDMI interfaces, providing maximum connectivity flexibility.

2.2 Output Options

This module provides two professional video outputs on a single board:

  • 3G-SDI Output: Supports up to 2160p (4K) at 30fps (in EX-SDI/Level B mode) and 1080p at 60fps. Ideal for long-distance transmission in broadcast environments.

  • HDMI Output: Supports up to 2160p (4K) at 30fps and 1080p at 60fps. Perfect for direct connection to monitors and consumer-grade recorders.

2.3 Image Performance

Superior Low-Light Capability: Captures clear video in extremely low-light environments, down to 0.33 Lux in monochrome mode.

Adaptive Imaging: The auto day/night (ICR) function ensures optimal color reproduction by day and maximum light sensitivity by night.

Image Enhancement: Features Digital Noise Reduction (2D-DNR) for cleaner images and a Defog (DEGE DET) function to enhance contrast in poor atmospheric conditions.

2.4 Lens & Control System

The module supports C/CS mount lenses and includes a drive for auto-iris lenses for automatic exposure adjustment. All camera functions are managed through a detailed On-Screen Display (OSD) menu, controllable via the RS-485 or LC-ARS interface.

2.5 Physical Installation & Robustness

Dimensions: 73mm (W) x 73mm (H) x 140mm (L).

Mounting: Features a standard 1/4" screw hole for easy installation in various orientations.

Durability: Designed to operate reliably in a wide temperature range from -20°C to +80°C, making it suitable for outdoor and industrial use.

3.0 Comprehensive Specification Table
Group Parameter Specification
General Model LN330-4K30F
  Image Sensor 1/1.8" CMOS
  Total Pixels 8.29 MP (3840x2160)
Video SDI Output 2160p@25/30fps, 1080p@50/60fps
  HDMI Output 2160p@25/30fps, 1080p@50/60fps
  Output Format 1080p: HD/EX-SDI; 2160p: EX-SDI
Lens Mount C/CS Mount
  Iris Auto Iris / Fixed
Performance Min. Illumination Color: 0.59 lux, B/W: 0.33 lux
  Day/Night Auto ICR / Color / B/W / External
Image Control Digital Noise Reduction 2D-DNR (Off / Low / Medium / High)
  Defog DEGE DET (On / Off)
  Privacy Masking Yes
Interface Control RS-485 / LC-ARS (Selectable)
  Menu OSD with Key Control
Electrical Power Supply DC 12V ±10%
  Operating Current 620 mA
Mechanical Dimensions 73 x 73 x 140 mm
  Operating Temperature -20°C ~ +80°C
  Weight 0.42 kg

For OEM pricing and technical support, please contact our sales team.
