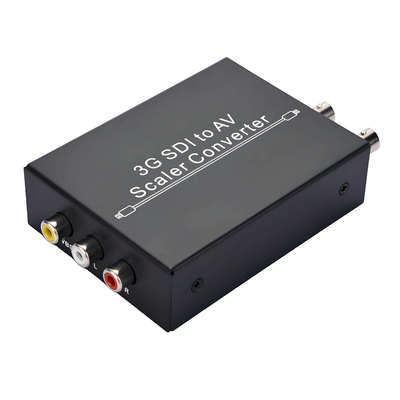

LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance

Products

LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance

MOQ:	1
Price:	$58
Standard Packaging:	Carton
Delivery Period:	7-15 working days
Payment Method:	T/T
Supply Capacity:	2500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Lntech

Certification

CE ISO

Model Number

LN-F001

Signal Conversion:

SDI To Composite Video (CVBS) + Stereo Audio

Signal Distribution:

SDI Loop-through Output For Daisy-chaining

Transmission:

Up To 300m (SD-SDI), 200m (HD-SDI), 100m (3G-SDI)

Compatibility:

Supports All SDI Standards; PAL/NTSC Output

Operation:

Manual PAL/NTSC Selection Button

Build:

Metal Housing, ESD Protection, Compact Size

Highlight:

ESD Protection SDI To AV Converter

300m Distance av to sdi converter

Metal Housing SDI To AV Converter

Product Description

LN-F001 SDI to AV+SDI Converter

Model: LN-F001

Input: 1× BNC (3G-SDI/HD-SDI/SD-SDI)

Outputs: 1× BNC (SDI out), 3× RCA (CVBS, L, R)

Video Output: PAL/NTSC

Max Distance: 300m

Professional SDI to composite video and audio converter with SDI loop-through output.

1.0 Key Technical Features

Section	Key Attributes
Signal Conversion	SDI to composite video (CVBS) + stereo audio
Signal Distribution	SDI loop-through output for daisy-chaining
Transmission	Up to 300m (SD-SDI), 200m (HD-SDI), 100m (3G-SDI)
Compatibility	Supports all SDI standards; PAL/NTSC output
Operation	Manual PAL/NTSC selection button
Build	Metal housing, ESD protection, compact size

2.0 Technical Documentation

2.1 Overview

The LN-F001 converts digital SDI signals to analog composite video and stereo audio, allowing modern video sources to connect to legacy displays. An SDI loop-through output allows simultaneous connection to SDI monitors or recorders.

2.2 Signal Specifications

Input: 1× BNC (3G-SDI/HD-SDI/SD-SDI)
Outputs: 1× BNC (SDI loop), 3× RCA (CVBS, L, R)
Max Bitrate: 2.97Gbps
Resolutions: SD, HD, 3G-SDI
Output Format: PAL or NTSC (user-selectable)
Audio: 2CH analog stereo

2.3 Physical Specifications

Dimensions: 92mm × 67mm × 25mm
Weight: 180g
Power: DC 5V
Consumption: 5W max
Operating Temp: 0°C to 40°C

2.4 Included Accessories

1× LN-F001 Converter
1× 5V DC Power Adapter
1× User Manual

3.0 Comprehensive Specification Table

Category	Parameter	Specification
General	Model	LN-F001
	Input	1× BNC
	Outputs	1× BNC, 3× RCA
Signal	Max Bitrate	2.97Gbps
	Resolutions	SD, HD, 3G-SDI
	Output Format	PAL / NTSC
	Audio	2CH analog
	Distance	300m (SD), 200m (HD), 100m (3G)
Electrical	Power	DC 5V
	Consumption	5W max
	ESD Protection	±8kV (air), ±4kV (contact)
Physical	Dimensions	92×67×25 mm
	Weight	180g
	Housing	Metal
Environmental	Operating Temp	0°C to 40°C
	Storage Temp	-20°C to 60°C
	Humidity	20%–90% RH

4.0 Applications & Resources

4.1 Typical Applications

Broadcast studio monitoring on legacy displays
Live event video distribution to analog projectors
Education facilities with mixed digital/analog systems
Worship venues with older video systems
Security DVR monitoring with analog inputs
Retrofit installations with CRT displays

4.2 Package Contents

LN-F001 SDI to AV+SDI Converter
5V DC Power Adapter
User Manual

4.3 Technical Resources

Datasheet (PDF)
User Manual (PDF)
Installation Guide
Application Notes

For technical support, customization, or bulk orders, contact our professional AV team.
