PRODUCTS DETAILS

Home > Products >

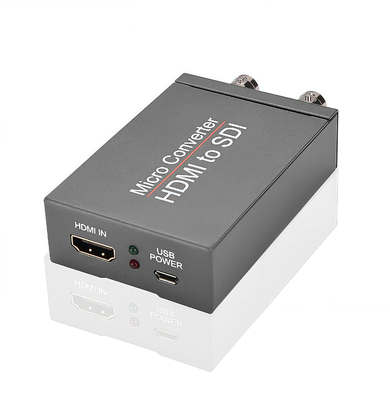

HDMI To SDI+SDI Video Converter Dual Output 300m Transmission

Products

HDMI To SDI+SDI Video Converter Dual Output 300m Transmission

MOQ:	1
Price:	$28
Standard Packaging:	Carton
Delivery Period:	7-15 working days
Payment Method:	T/T
Supply Capacity:	2500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Lntech

Certification

CE ISO

Model Number

LN-M009

Input Interface:

Output Configuration:

Dual BNC (SDI)

Signal Processing:

2.97 Gbps Bitrate Maintenance

Transmission Distance:

Up To 300m (SD-SDI)

Compliance Standards:

SMPTE 424M/425M, 292M, 259M

Physical Design:

97×55×23mm Compact Enclosure

Highlight:

300m Transmission SDI Video Converter

SDI Video Converter Dual Output

Product Description

HDMI to SDI+SDI Converter Technical Overview

Professional HDMI to SDI Conversion with Long-Distance Transmission Capability

The HDMI to SDI+SDI Converter is engineered for professional applications requiring reliable conversion of HDMI signals to SDI format with extended transmission capabilities. This device accepts HDMI input and provides dual SDI outputs capable of transmitting signals up to 300 meters using SD-SDI format. Operating at 2.97 Gbps maximum bitrate, the converter maintains full signal integrity while supporting 720p and 1080p resolutions. Compliant with SMPTE 424M/425M, 292M, and 259M standards, this converter is essential for broadcast, live event production, and professional AV installations requiring long-distance signal transmission.

Core Technical Architecture

Component	Specification	Professional Application
Input Interface	HDMI	Consumer and professional source connectivity
Output Configuration	Dual BNC (SDI)	Simultaneous dual display distribution
Signal Processing	2.97 Gbps bitrate maintenance	Broadcast-quality conversion
Transmission Distance	Up to 300m (SD-SDI)	Long-distance installation capability
Compliance Standards	SMPTE 424M/425M, 292M, 259M	Broadcast industry compliance
Physical Design	975523mm compact enclosure	Flexible installation options

In-Depth Technical Analysis

1. Signal Processing Performance

Bitrate Maintenance: Full 2.97 Gbps processing for 3G-SDI signals
Format Conversion: HDMI to SDI with embedded audio support
Signal Reclocking: Clean output signal for long-distance transmission
Real-time Operation: No frame delay or processing latency

2. Transmission Capabilities

3G-SDI: Up to 100m transmission distance
HD-SDI: Up to 200m transmission distance
SD-SDI: Up to 300m maximum transmission distance
Cable Quality: Performance varies with cable specification

3. Interface Capabilities

HDMI Input: Supports 720p and 1080p resolutions
Dual SDI Outputs: Simultaneous output to two displays
BNC Connectors: Professional locking connectors
LED Indicators: Power and signal lock status

4. Standards Compliance

SMPTE 424M/425M: 3G-SDI standards for 1080p
SMPTE 292M: HD-SDI standards for 720p/1080i
SMPTE 259M: SD-SDI standards for long-distance

Detailed Technical Specifications Table

Category	Parameter	Detail
Interfaces	Input	1 * HDMI
	Outputs	2 * BNC (3G-SDI/HD-SDI/SD-SDI)
Signal	Max Bitrate	2.97 Gbps
	Supported Resolutions	720p, 1080p
	Transmission Distance	100m (3G), 200m (HD), 300m (SD)
	Compliance	SMPTE 424M/425M, 292M, 259M
Electrical	Power Supply	DC 5V via USB
	Power Consumption	5W (maximum)
	ESD Protection	±8kV (air), ±4kV (contact)
Physical	Dimensions	97mm * 55mm * 23mm
	Weight	130 grams
	Enclosure	Metal construction
Environmental	Operating Temperature	0°C to 40°C
	Storage Temperature	-20°C to 60°C
	Humidity	20% to 90% RH (non-condensing)

Tags:

Products

MOQ:	1
Price:	$28
Standard Packaging:	Carton
Delivery Period:	7-15 working days
Payment Method:	T/T
Supply Capacity:	2500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Lntech

Certification

CE ISO

Model Number

LN-M009

Input Interface:

HDMI

Output Configuration:

Dual BNC (SDI)

Signal Processing:

2.97 Gbps Bitrate Maintenance

Transmission Distance:

Up To 300m (SD-SDI)

Compliance Standards:

SMPTE 424M/425M, 292M, 259M

Physical Design:

97×55×23mm Compact Enclosure

Minimum Order Quantity:

Price:

$28

Packaging Details:

Carton

Delivery Time:

7-15 working days

Payment Terms:

T/T

Supply Ability:

2500

Highlight

300m Transmission SDI Video Converter

SDI Video Converter Dual Output

Product Description

HDMI to SDI+SDI Converter Technical Overview

Professional HDMI to SDI Conversion with Long-Distance Transmission Capability

Core Technical Architecture

Component	Specification	Professional Application
Input Interface	HDMI	Consumer and professional source connectivity
Output Configuration	Dual BNC (SDI)	Simultaneous dual display distribution
Signal Processing	2.97 Gbps bitrate maintenance	Broadcast-quality conversion
Transmission Distance	Up to 300m (SD-SDI)	Long-distance installation capability
Compliance Standards	SMPTE 424M/425M, 292M, 259M	Broadcast industry compliance
Physical Design	975523mm compact enclosure	Flexible installation options

In-Depth Technical Analysis

1. Signal Processing Performance

Bitrate Maintenance: Full 2.97 Gbps processing for 3G-SDI signals
Format Conversion: HDMI to SDI with embedded audio support
Signal Reclocking: Clean output signal for long-distance transmission
Real-time Operation: No frame delay or processing latency

2. Transmission Capabilities

3G-SDI: Up to 100m transmission distance
HD-SDI: Up to 200m transmission distance
SD-SDI: Up to 300m maximum transmission distance
Cable Quality: Performance varies with cable specification

3. Interface Capabilities

HDMI Input: Supports 720p and 1080p resolutions
Dual SDI Outputs: Simultaneous output to two displays
BNC Connectors: Professional locking connectors
LED Indicators: Power and signal lock status

4. Standards Compliance

SMPTE 424M/425M: 3G-SDI standards for 1080p
SMPTE 292M: HD-SDI standards for 720p/1080i
SMPTE 259M: SD-SDI standards for long-distance

Detailed Technical Specifications Table

Category	Parameter	Detail
Interfaces	Input	1 * HDMI
	Outputs	2 * BNC (3G-SDI/HD-SDI/SD-SDI)
Signal	Max Bitrate	2.97 Gbps
	Supported Resolutions	720p, 1080p
	Transmission Distance	100m (3G), 200m (HD), 300m (SD)
	Compliance	SMPTE 424M/425M, 292M, 259M
Electrical	Power Supply	DC 5V via USB
	Power Consumption	5W (maximum)
	ESD Protection	±8kV (air), ±4kV (contact)
Physical	Dimensions	97mm * 55mm * 23mm
	Weight	130 grams
	Enclosure	Metal construction
Environmental	Operating Temperature	0°C to 40°C
	Storage Temperature	-20°C to 60°C
	Humidity	20% to 90% RH (non-condensing)
