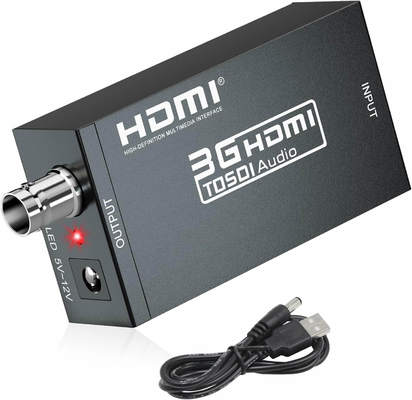

Reliable HDMI To SDI Converter ESD Protection High Performance LN-S009
  • name
  • name
  • name

Reliable HDMI To SDI Converter ESD Protection High Performance LN-S009

MOQ: 1
Price: $23
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-S009
Highlight:

reliable HDMI To SDI Converter

,

high performance HDMI To SDI Converter

,

reliable SDI video Converter

Product Description
LN-S009 HDMI to SDI Converter: Technical Data Sheet

Engineered for integrating consumer and prosumer HDMI sources into professional broadcast and production environments, the Lntech LN-S009 provides a reliable, standards-compliant interface conversion. It accepts HDMI signals conforming to HDMI 1.4 and HDCP 1.2 protocols, converts them to SMPTE-standard SDI, and handles audio embedding seamlessly for streamlined system design.

Core Technical Capabilities:
  • Input Interface: HDMI Type A connector, supporting video resolutions up to 1080p60 and multi-channel digital audio.
  • Output Interface: Single BNC connector outputting SDI signal (3G/HD/SD compatible).
  • Signal Processing: Automatic input resolution detection and format conversion.
  • Audio Handling: De-embeds audio from the HDMI input stream and re-embeds it into the SDI output.
  • Compliance: Adheres to HDMI 1.4, HDCP 1.2, and relevant SMPTE SDI standards.
  • Protection: Integrated ESD protection on interfaces.
Detailed Technical Specifications:
Category Parameter LN-S009 Detail
General Model LN-S009
Video Input Connector 1 x HDMI (Type A)
  Standard HDMI 1.4, HDCP 1.2
  Max Resolution 1920x1080 @ 60 Hz (1080p60)
Video Output Connector 1 x BNC (75Ω)
  Signal Type SDI
Audio Processing Embeds HDMI audio into SDI output
  Supported Sample Rates 32, 44.1, 48, 88.2, 96, 192 kHz
Signal Distance SDI Transmission* 3G: ~80m, HD: ~160m, SD: ~260m (Using SYWV cable)
Power Input DC 5V / 2A
  Connector DC Jack (Center Positive)
  Consumption ~2.5 Watts
Indicators P (Power) Illuminates when power is applied
  V (Video) Illuminates when HDMI signal is locked
  S (Status) Illuminates during normal operation
Environmental Operating Temp -5°C to +35°C
  Operating Humidity 5% to 90% RH (non-condensing)
Physical Dimensions 80mm (L) x 41mm (W) x 25mm (H)
  Weight 150 grams
  Housing Metal

Application Notes:
The LN-S009 is designed for continuous operation in professional AV workflows. Its primary function is to bridge the gap between HDMI source devices (e.g., DSLR cameras, laptops, media players) and SDI-based infrastructure (e.g., production switchers, routers, long cable runs to monitors).

Package Includes:
  • LN-S009 Converter Unit
  • AC/DC Power Adapter (Output: DC 5V/2A)
  • User Manual

Reliable HDMI To SDI Converter ESD Protection High Performance LN-S009 0



Reliable HDMI To SDI Converter ESD Protection High Performance LN-S009 1

Reliable HDMI To SDI Converter ESD Protection High Performance LN-S009 2
