LN-348 1080P Mini Camera With Panasonic Sensor Easy Integration

Explore the LN-348 specs: 1/3” Panasonic sensor, 1080P, POC support, IP67 metal housing. Features WDR, 3D-DNR. Download datasheets. Designed for easy integration.

Model: LN-348 | Platform: EN771T + MN34227 | Lens: 3.6mm Fixed | Housing: IP67 Metal

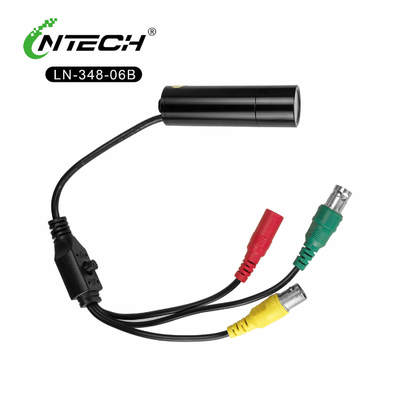

A compact 1080P camera in a rugged IP67 metal housing. Features POC support for easy installation and WDR/3D-DNR for enhanced image quality.

2.1 Description
The LN-348 is a high-definition mini camera module designed for discrete surveillance and OEM integration. Based on the EN771T + MN34227 platform, it delivers reliable 1080p full HD video. Its support for Power over Coax (POC) simplifies installation by combining power and video transmission into a single cable. The camera's all-metal IP67-rated housing ensures durability and reliability in indoor and outdoor environments.

2.2 POC Functionality
The optional POC function is a key feature for integration. It allows the camera to receive power directly from the DVR or a POC injector over the same coaxial cable used for the video signal, reducing cable requirements and installation time.

2.3 Image Performance

• High Definition: Captures video at 1080p resolution for clear and detailed images.

• Adaptive Imaging: Wide Dynamic Range (WDR) improves visibility in high-contrast scenes. 3D-DNR reduces noise for cleaner low-light video.

• Light Control: HLC (Highlight Compensation) and BLC (Backlight Compensation) modes help manage strong light sources and backlit subjects.

2.4 Physical Build

• Housing: Constructed from metal for superior durability, heat dissipation, and tamper resistance.

• Weatherproofing: The IP67 rating guarantees protection against dust and water immersion, making it suitable for outdoor applications.

• Dimensions: The ultra-compact form factor (φ23mm x 79.5mm) allows for installation in tight spaces.

Contact us for OEM pricing and technical support. Specify if POC functionality is required when ordering.
