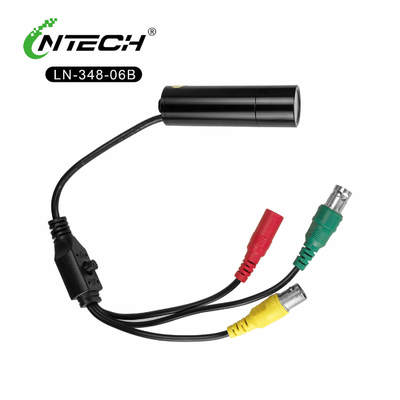

LN-348 1080P Mini Camera IP67 Waterproof Mini Surveillance Camera POC Support
  • name
  • name
  • name

LN-348 1080P Mini Camera IP67 Waterproof Mini Surveillance Camera POC Support

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-348
Resolution:
1080P @ 30fps
Sensor:
1/3" Panasonic CMOS
Weatherproof:
IP67
Key Features:
WDR, 3D-DNR, POC Support
Construction:
Metal Housing
Typical Applications:
Discrete Indoor/Outdoor Surveillance
Highlight:

1080P Mini Camera IP67

,

Waterproof mini surveillance camera

,

mini surveillance camera POC Support

Product Description
LN-348 (1080P Mini Dome) Technical Overview
Compact and Robust Dome Camera for Discrete Surveillance Applications

The LN-348 is a mini dome camera designed for applications where space and discretion are critical. It incorporates a 1/3" Panasonic CMOS sensor and EN771T processor to deliver 1080P resolution at 30fps. The camera supports optional POC (Power over Coax), allowing for simplified installation using a single cable. With features such as WDR, 3D-DNR, and IP67-rated metal housing, it is suited for both indoor and outdoor use in retail, hospitality, and residential settings.

Core Functional Summary
Attribute Description
Resolution 1080P @ 30fps
Sensor 1/3" Panasonic CMOS
Weatherproof IP67
Key Features WDR, 3D-DNR, POC Support
Construction Metal Housing
Typical Applications Discrete Indoor/Outdoor Surveillance
In-Depth Technical Analysis
  1. Image Performance
    The combination of the Panasonic sensor and EN771T processor provides reliable 1080P video with good low-light performance. WDR ensures balanced exposure in high-contrast scenes, while 3D-DNR reduces noise without motion blur.
  2. POC Functionality
    Optional POC support enables power and video transmission over a single coaxial cable, reducing installation complexity and cost. This is particularly beneficial in retrofit scenarios where existing coaxial infrastructure is present.
  3. Physical and Environmental Design
    The IP67-rated metal housing offers protection against dust, water, and tampering. The compact dimensions (φ23×79.5mm) and low weight (80g) make it easy to install in confined or discreet locations.
  4. Advanced Features
  5. Digital zoom for closer inspection of details
  6. Motion detection and privacy masking for enhanced security and privacy
  7. HLC/BLC to manage bright lights and backlight conditions
Detailed Technical Specifications Table
Category Parameter Detail
General Model LN-348
  Sensor 1/3" Panasonic CMOS
  Processor EN771T + MN34227
Optical Lens 3.6mm fixed
  POC Support Optional
Video Resolution 1080P @ 30fps, 720P @ 30fps
  WDR Supported
  3D-DNR Supported
Image Digital Zoom Supported
  Motion Detection Supported
  Privacy Masking Supported
Mechanical Housing Metal
  Weatherproof IP67
  Dimensions φ23 × 79.5mm
  Weight 80g
Electrical Power DC 12V or POC
Tags:

small sdi camera,

1080p sdi camera,

sdi security camera
