PRODUCTS DETAILS

Home > Products >

Versatile HD Camera Module 20x Optical Zoom Low Light LN-20XN-200W

Products

Versatile HD Camera Module 20x Optical Zoom Low Light LN-20XN-200W

MOQ:	1
Standard Packaging:	Carton
Delivery Period:	7-15 working days
Payment Method:	T/T
Supply Capacity:	2500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Lntech

Certification

CE ISO

Model Number

LN-20XN

Digital Zoom:

20x (5.9mm–94.4mm)

Sensor:

1/2.8" CMOS, 2.13MP

Video Output:

HD-SDI, EX-SDI, TVI, AHD, CVI, CVBS

Low Light Performance:

0.001 Lux (B&W, DSS)

Key Features:

3D-DNR, WDR, Digital Slow Shutter

Ideal For:

Surveillance, Long-Range Monitoring, Broadcast Auxiliary

Highlight:

Low Light HD Camera Module

Versatile HD Camera Module

Versatile security Camera module

Product Description

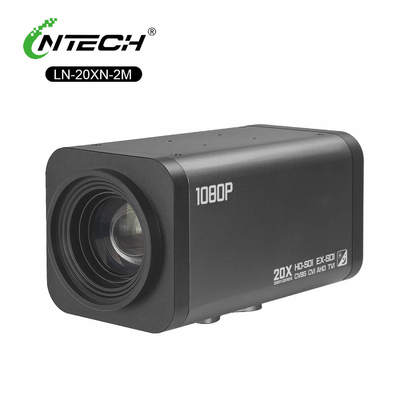

LN-20XN-200W HD Camera Module: Superior Zoom and Multi-Format Flexibility

Capture Clear Details at Any Distance with 20x Optical Zoom and Exceptional Low-Light Performance

The Lntech LN-20XN-200W is a versatile HD camera module designed for applications requiring detailed imaging over variable distances. Equipped with a 20x optical zoom lens and a 1/2.8" CMOS sensor, it delivers 2.13MP effective resolution and supports output formats including HD-SDI, EX-SDI, TVI, AHD, CVI, and CVBS. With a minimum illumination of 0.001 lux in B&W mode, advanced 3D-DNR, and wide dynamic range, this camera excels in both bright and challenging light conditions. Its compact design and multi-format compatibility make it ideal for security, surveillance, and specialized monitoring systems.

Quick Specification Overview

Feature	LN-20XN-200W Specification	Advantage
Optical Zoom	20x (5.9mm–94.4mm)	Detailed long-range imaging
Sensor	1/2.8" CMOS, 2.13MP	Balanced resolution and sensitivity
Video Output	HD-SDI, EX-SDI, TVI, AHD, CVI, CVBS	Universal compatibility
Low Light Performance	0.001 lux (B&W, DSS)	Clear imaging in near darkness
Key Features	3D-DNR, WDR, Digital Slow Shutter	Enhanced clarity and stability
Ideal For	Surveillance, Long-Range Monitoring, Broadcast Auxiliary	Flexible deployment

Why Choose the LN-20XN-200W?

Powerful Optical Zoom

The 20x motorized zoom lens allows precise framing and detail capture from a distance, reducing the need for physical camera repositioning.
Multi-Format Video Output

Support for HD-SDI, TVI, AHD, CVI, and CVBS ensures compatibility with both modern and legacy video systems, offering integration flexibility.
Excellent Low-Light Capability

With DSS technology, the camera achieves a minimum illumination of 0.001 lux, making it suitable for 24/7 operation in varying lighting conditions.
Compact and Efficient Design

Measuring only 60×60×115 mm and consuming low power (130mA typical), the module is easy to integrate into space-constrained and power-sensitive applications.

Complete Technical Specifications

Parameter	Specification
Model	LN-20XN-200W
Sensor	1/2.8" CMOS
Total Pixels	1945(H) × 1109(V) = 2.16 MP
Effective Pixels	1945(H) × 1097(V) = 2.13 MP
Video Output	HD-SDI, EX-SDI, TVI, AHD, CVI, CVBS
Resolution/Frame Rate	1080p@30/25fps, 720p@60/50/30/25fps
Lens	20x Optical Zoom, f=5.9mm–94.4mm, F1.8–F3.9
Min. Illumination	Color: 0.24 lux, DSS: 0.125 lux B&W: 0.001 lux, DSS: 0.0025 lux
Zoom & Focus	Motorized
Exposure Control	Brightness, Frame Accumulation (x2–x32)
Day/Night	Auto(ICR), Color, B&W, External Trigger
DNR	3D-DNR (Auto/Off/Low/Mid/High)
WDR	Support (Backlight Compensation, HLC, WDR)
Digital Slow Shutter	Off, x2, x4, x8, x16, x32
Privacy Masking	On/Off (24 zones)
Shutter Speed	1/30(25) to 1/60,000 sec
Power Supply	DC 12V ±10%
Power Consumption	130mA (typical), 350mA (max startup)
Operating Temperature	-10°C to +50°C
Dimensions	60(W) × 60(H) × 115(L) mm
Weight	0.42 kg
