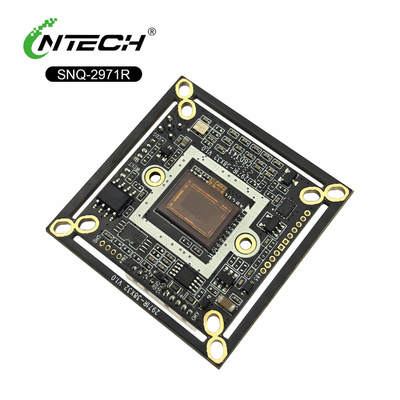

Lntech 2971R 2MP SDI Camera Module with Sony IMX307 Sensor 38x32mm

Product Overview

The Lntech 2971R is a standardized, compact camera module designed for high-definition video surveillance. This model maintains the full functionality of the 2971 series but is packaged in a reduced-size PCB measuring 38mm by 32mm, providing greater flexibility for product design engineers.

Key Features

• Compact Design: The 38x32mm footprint allows for integration into smaller camera housings, enabling more streamlined and discreet product designs.
• Multi-Format Output: This module supports six different video output formats (AHD, TVI, CVI, EX-SDI, HD-SDI, CVBS). The desired output is selectable post-production, offering significant logistical advantages.
• High-Performance Imaging: At its core is the Sony IMX307 STARVIS sensor, ensuring high sensitivity and excellent performance in low-light conditions.
• Comprehensive Functionality: It includes essential features for professional surveillance, such as support for auto-focus lenses, Wide Dynamic Range (WDR) for challenging lighting, and Defog for poor weather conditions.
• Ease of Integration: Standardized connectors and control protocols (Coaxial OSD, RS485) simplify the development process for camera manufacturers.

Benefits for Integrators

• Design Flexibility: The smaller size unlocks new possibilities for miniaturized camera products.
• Inventory Simplification: A single module SKU can be configured for multiple markets and applications.
• Reduced Time-to-Market: Standardized features and interfaces accelerate product development cycles.
• Cost-Effectiveness: Leverages a proven platform (2971) with the added benefit of a compact form factor.

Typical Applications

• Compact Dome Cameras
• Mini Bullet Cameras
• Hidden and Covert Cameras
• Specialty OEM Applications

Note: The video output selection method (DIP switch or KEY pin) is determined at the firmware level. Please confirm the available configuration when ordering.
