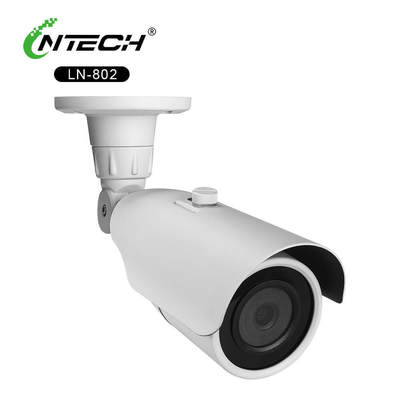

Multi Format Outdoor Waterproof Camera 1080p 30fps Metal Housing LN-802

Lntech LN-802 Technical Specifications - Multi-Format Outdoor Camera, IP67, 40M IR

Technical specifications for Lntech LN-802 outdoor security camera. 6-in-1 video output, 2MP models, 40M IR night vision, IP67 rating, metal construction. Professional security solution.

The Lntech LN-802 represents a comprehensive outdoor surveillance solution engineered for professional security applications requiring format flexibility and environmental durability. Available in two performance tiers - a 2MP version utilizing Panasonic CMOS technology with Sony CMOS sensors - the camera delivers exceptional image quality across various lighting conditions. Its defining feature is the configurable 6-in-1 video output, supporting EX-SDI, HD-SDI, HD-TVI, AHD, CVI, and CVBS protocols. With an IP67 environmental rating, extended 40-meter infrared illumination, and robust metal housing, it is designed for reliable operation in demanding outdoor installations.

Core Functional Summary

In-Depth Technical Analysis

1. Imaging Performance & Platform Options

The LN-802 platform offers two distinct imaging configurations:

• Standard Definition Model: Based on the EN77TT processor and 1/3-inch Panasonic MNS4227 CMOS sensor, delivering 1080p resolution at 30 frames per second for general surveillance applications.

• High Resolution Model: Utilizing either the 779+IMX326 or 781+IMX335 platform with 1/2.9-inch Sony CMOS sensors, providing enhanced 2MP resolution output as 1440p video for detail-critical monitoring scenarios.

2. Multi-Format Output Architecture

The camera's primary technical advantage lies in its configurable video output subsystem:

• Digital Outputs: Supports EX-SDI for uncompressed digital video in 4MP/5MP mode and HD-SDI for high-definition digital transmission.

• Analog HD Outputs: Compatible with HD-TVI, AHD, and CVI high-definition analog formats.

• Legacy Support: Includes CVBS output for standard definition systems.
  This comprehensive output flexibility ensures compatibility with virtually all modern and legacy recording systems.

3. Optical & Illumination System

• Lens Configuration: Offers both fixed 3.6mm lenses for standard field of view applications and optional 2.8-8mm varifocal lenses for adjustable coverage requirements.

• Infrared Performance: The 18-element SMD LED array provides consistent infrared illumination up to 40 meters, with advanced optics ensuring even light distribution and minimal hotspot effects.

4. Environmental Protection & Build Quality

• Weather Resistance: The IP67 certification guarantees complete protection against dust ingress and protection against temporary immersion, making the camera suitable for extreme outdoor conditions.

• Mechanical Design: Features a three-axis moisture-proof construction with internal cable routing to prevent water penetration at connection points. The heavy-duty metal housing provides impact resistance and effective thermal management.

Detailed Technical Specifications Table
