LN-B200 HD Camera Module with 1080p at 60fps 20x or 30x Optical Zoom and H.265 Encoding for Broadcast and Live Streaming
  • name
  • name
  • name

LN-B200 HD Camera Module with 1080p at 60fps 20x or 30x Optical Zoom and H.265 Encoding for Broadcast and Live Streaming

MOQ: 1
Price: $206-$265
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-B200
Video:
- Full HD 1080p At 60fps - H.265 Encoding - 3G-SDI, HDMI, IP Streaming
Audio:
- AAC Audio Encoding - 3.5mm Audio Interface
Lens:
- 20x Or 30x Optical Zoom - Wide Dynamic Range
Power & Control:
- 12V DC Or PoE+ - RS485, VISCA, ONVIF
Applications:
- Video Conference, Broadcast, Education, Live Streaming
Highlight:

HD Video Camera 1080p

,

60fps live streaming Camera

Product Description
LN-B200 Audio-Video Integrated SDI AHD Camera

Model: LN-B200 | Type: Broadcast Camera | Sensor: 1/2.8" CMOS | Zoom: 20x/30x Optical | Version: V2.0

A professional all-in-one camera supporting HDMI, 3G-SDI, and IP streaming outputs. Ideal for video conferencing, broadcasting, education, and live streaming.

1.0 Key Features at a Glance
Section Key Attributes
Video - Full HD 1080p at 60fps
- H.265 Encoding
- 3G-SDI, HDMI, IP Streaming
Audio - AAC Audio Encoding
- 3.5mm Audio Interface
Lens - 20x or 30x Optical Zoom
- Wide Dynamic Range
Power & Control - 12V DC or PoE+
- RS485, VISCA, ONVIF
Applications - Video Conference, Broadcast, Education, Live Streaming
2.0 Detailed Product Information
2.1 Product Overview

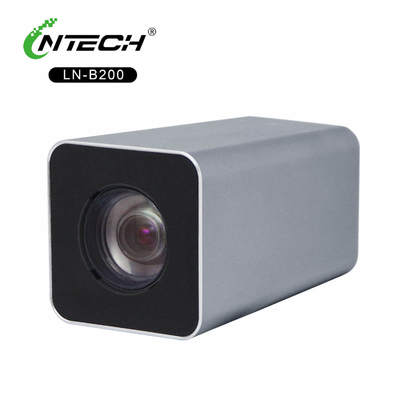

The LN-B200 is a broadcast-grade camera that integrates high-definition video and audio into a compact, metal housing. It is designed for professional environments such as video conferencing rooms, broadcast studios, remote classrooms, and live streaming setups. With multiple output options and support for modern encoding standards, it offers both performance and flexibility.

2.2 Video Performance

  • Sensor: 1/2.8-inch CMOS for high sensitivity and low noise.

  • Resolution: Supports up to 1080p at 60fps for smooth motion.

  • Zoom: Choose between 20x or 30x optical zoom to capture fine details.

  • Encoding: H.265 compression reduces bandwidth usage by up to 50% compared to H.264.

2.3 Audio Capabilities

  • Built-in AAC audio encoder delivers clear sound.

  • 3.5mm audio interface allows connection to external microphones or speakers.

2.4 Connectivity and Control

  • Video Outputs: Simultaneous 3G-SDI, HDMI, and IP streaming.

  • IP Streaming: Stream directly to platforms like YouTube, Facebook, OBS via RTMP/RTMPS/RTSP.

  • Control: Use RS485 interface with VISCA, Pelco P/D, or ONVIF protocols for remote operation.

2.5 Installation and Power

  • Power Options: 12V DC or optional PoE+ for simplified wiring.

  • Mounting: Supports ceiling, wall, tripod, and desktop placement.

  • Environment: Operating temperature range of -10°C to 50°C.

3.0 Comprehensive Specification Table
Group Parameter Specification
General Model LN-B200

Image Sensor 1/2.8-inch CMOS



Lens Optical Zoom 20x or 30x

Focal Length 20x: 4.7-94.0mm / 30x: 5.2-148.4mm

Aperture 20x: F1.6-3.5 / 30x: F1.3-4.8



Video Max Resolution 1080p60

Output Interfaces 3G-SDI, HDMI, IP Streaming



Audio Encoding AAC

Interface 3.5mm Jack



Control Protocols VISCA, Pelco P/D, ONVIF

Interface RS485, RJ45



Power Input DC 12V, PoE+ (Optional)

Consumption ≤12W



Physical Dimensions 70x70x116mm (20x) / 70x70x124mm (30x)

Weight 0.2kg

Mounting Ceiling, Wall, Tripod, Desktop
4.0 Resources

  • Download Datasheet (PDF)

  • Download User Manual (PDF)

  • Download Control Protocol Guide (PDF)
