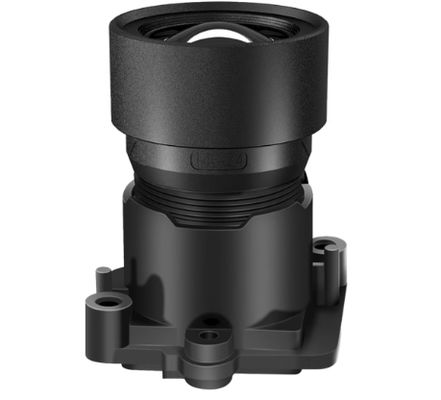

LN10118 Industrial Camera Lens 3.3mm FL, F1.1, 5MP Resolution Compact Design

Products

LN10118 Industrial Camera Lens 3.3mm FL, F1.1, 5MP Resolution Compact Design

MOQ:	1
Price:	$9
Standard Packaging:	Carton
Delivery Period:	7-15 working days
Payment Method:	T/T
Supply Capacity:	2500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Lntech

Certification

CE ISO

Model Number

LN10118

Optical Performance:

3.3mm FL, F1.1, 5MP Resolution

Field Of View:

Up To 131° Diagonal

Sensor Compatibility:

1/2.7", 1/2.8", 1/3"

IR Filter:

Dual-side AR And IR Coating

Mechanical:

M12 Mount, Compact Design

Environmental:

-20°C To +60°C Operation

Highlight:

Industrial Camera Lens 3.3mm FL

5MP Industrial Camera Lens

Compact industrial cameras lens

Product Description

LN10118 5MP Super Wide-Angle Lens

Model: LN10118

Focal Length: 3.3mm

Aperture: F1.1

Resolution: 5MP

Max FOV: 131° diagonal

Mount: M12×P0.5

Features: IR filter, wide temperature operation, super wide-angle

High-performance 5MP super wide-angle lens with F1.1 aperture for professional imaging applications.

1.0 Key Technical Features

Section	Key Attributes
Optical Performance	3.3mm FL, F1.1, 5MP resolution
Field of View	Up to 131° diagonal
Sensor Compatibility	1/2.7", 1/2.8", 1/3"
IR Filter	Dual-side AR and IR coating
Mechanical	M12 mount, compact design
Environmental	-20°C to +60°C operation

2.0 Technical Documentation

2.1 Overview

The LN10118 is a fixed-focus super wide-angle lens designed for high-resolution imaging in automotive, surveillance, drone, and machine vision systems. It features a fast F1.1 aperture, integrated IR filter, and robust mechanical construction.

2.2 Optical Specifications

Focal Length: 3.3mm ±5%
Aperture: F1.1 ±10%
Resolution: 5MP (2592×1944)
Sensor Size: 1/2.7" to 1/3"
Field of View: 119.7°–131.0° (diagonal)
Distortion: -46% to -54%
Relative Illumination: 43.5%–52%

2.3 IR Filter Specifications

Coating: Dual-side AR and IR
Transmission: 440–600nm: T > 85%, 700–1050nm: T < 3%
Reliability: Passes 85°C/85% RH 48h, 100°C 24h, -20°C 24h tests

2.4 Mechanical Specifications

Mount: M12×P0.5
Back Focal Length: 4.18mm (mechanical)
Total Length: 22.09mm
Weight: ≈20g

3.0 Comprehensive Specification Table

Category	Parameter	Specification
General	Model	LN10118
	Part Number	01.10118.009.05
Optical	Focal Length	3.3mm ±5%
	Aperture	F1.1 ±10%
	Resolution	5MP
	Sensor Size	1/2.7", 1/2.8", 1/3"
	FOV (Diag)	119.7°–131.0°
	Distortion	-46% to -54%
Mechanical	Mount	M12×P0.5
	BFL	4.18mm (mech), 4.25mm (optical)
	Total Length	22.09mm
IR Filter	Coating	Dual-side AR and IR
	Reliability	Passes environmental tests
Environmental	Operating Temp	-20°C to +60°C
	Storage Temp	-30°C to +80°C

4.0 Applications & Resources

4.1 Typical Applications

Automotive dashcams and surround-view systems
Surveillance and security cameras
Drone and UAV navigation cameras
Machine vision and robotics
IoT and smart devices
Virtual reality and immersive imaging

4.2 Package Contents

LN10118 Lens
Protective caps (front/rear)
Documentation

4.3 Technical Resources

Datasheet (PDF)
Mechanical Drawings (DWG/STEP)
Optical Test Reports
Reliability Test Reports
Integration Guide

For customization, volume pricing, or technical support, contact our professional imaging solutions team.
