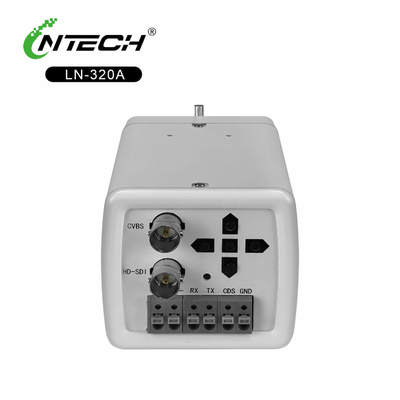

LN-320 1920x1080 Industrial High Speed Machine Vision Camera 3D-DNR
  • name
  • name
  • name
  • name
  • name
  • name

LN-320 1920x1080 Industrial High Speed Machine Vision Camera 3D-DNR

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Model Number
LN-320
Imaging Core:
1/2.8” Sony IMX307 CMOS
Resolution & Speed:
1080p (1920x1080) @ 30fps, Progressive Scan
Video Interface:
HDMI, HD-SDI, CVBS (Simultaneous)
Dynamic Range:
WDR: 120dB
Sensitivity Control:
Sens-Up: Up To X32, Manual Shutter To 1/30,000s
Lens Mount:
CS-mount
Key Features:
3D-DNR, HLC, BLC, Motion Detection, OSD
Mechanical:
Metal Housing, 133.4 X 69 X 64.5 Mm
Highlight:

Industrial High Speed Machine Vision Camera

,

1920x1080 machine vision camera

,

3D-DNR machine vision camera

Product Description

Explore the LN-320 specs: Sony IMX307 sensor, 1080P, HDMI/HD-SDI/CVBS outputs, 120dB WDR. Download datasheets. Designed for machine vision and industrial integration.

LN-320 Industrial Camera Module

Model: LN-320 | Sensor: 1/2.8” Sony IMX307 | Output: HDMI / HD-SDI / CVBS | Resolution: 1080P@30fps

A multi-interface 1080P industrial camera with Sony IMX307 sensor and 120dB WDR. Designed for machine vision, QA, and high-definition monitoring applications.

1.0 Key Features at a Glance
Section Key Attributes
Imaging - 1/2.8” Sony IMX307 Sensor
- 1080P (1920x1080) @ 30fps
- 120dB Wide Dynamic Range (WDR)
- Sens-Up (x32)
Output & Compatibility - Simultaneous Output: HDMI / HD-SDI / CVBS
- CS-mount Lens Compatibility
Functionality - 3D-DNR, HLC, BLC
- Motion Detection
- Manual Shutter (1/30,000s)
Control - Comprehensive OSD Menu
- Adjustable Sharpness, AGC, Brightness
Integration - Compact Metal Housing
- DC 12V Power (< 2.5W)
2.0 Detailed Product Information

2.1 Description
The LN-320 is a high-definition camera designed for industrial and professional applications requiring reliable performance and multiple video output options. Based on a Sony IMX307 sensor, it delivers clear 1080p video. Its triple output (HDMI, HD-SDI, CVBS) provides exceptional integration flexibility, allowing connection to a wide variety of display and recording devices simultaneously. Advanced features like 120dB WDR make it suitable for complex lighting conditions.

2.2 Output Options
The camera provides three video outputs on a single unit:

  • HDMI: Digital interface for high-quality connection to monitors and modern capture devices.

  • HD-SDI: Digital serial interface for long-distance transmission to recorders.

  • CVBS: Analog composite output for basic monitoring or legacy systems.
    This multi-interface approach eliminates the need for external converters.

2.3 Image Performance

  • High Definition: Provides 2.13MP resolution for detailed imaging.

  • Adaptive Lighting: 120dB WDR handles high-contrast scenes. Sens-Up improves low-light performance, and HLC/BLC manage specific over-exposure issues.

  • Precision Control: Adjustable shutter speed (up to 1/30,000s) freezes fast motion, and 3D-DNR ensures a clean image.

2.4 Physical Build & Integration

  • Lens Mount: Standard CS-mount allows for the use of a wide range of industrial lenses.

  • Housing: The compact metal casing ensures durability in industrial environments.

  • Configuration: All image settings are easily configured via the built-in On-Screen Display (OSD) menu.

3.0 Comprehensive Specification Table
Group Parameter Specification
General Model Code LN-320
  Image Sensor 1/2.8” Sony IMX307 CMOS
  Effective Pixels 2.13MP (1920x1080)
  Scan System Progressive
Video Resolution 1080P
  Frame Rate 30 FPS
  Video Output HDMI / HD-SDI / CVBS
Image Control WDR 120dB
  Sens-up x2, x4, x8, x16, x32
  Shutter Speed 1/60s ~ 1/30,000s (Manual)
  DNR 3D-DNR (High/Med/Low)
  HLC Yes
  BLC Yes
  AGC 0-10 steps
  Motion Detect Yes
Lens Mount CS-mount
Power Input DC 12V (±10%)
  Consumption < 2.5W
Mechanical Dimensions 133.4 x 69 x 64.5 mm
  Material Metal

Contact us for OEM pricing and technical support.
