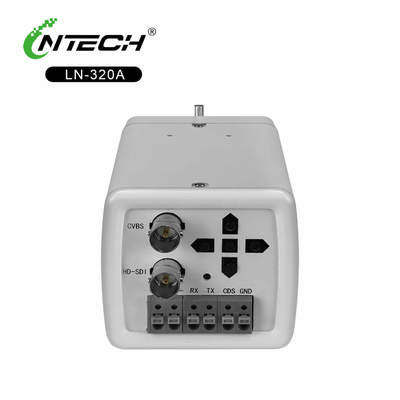

LN-320 Industrial Machine Vision Camera With 1080P Sony Sensor 120dB WDR
  • name
  • name
  • name

LN-320 Industrial Machine Vision Camera With 1080P Sony Sensor 120dB WDR

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Model Number
LN-320
Resolution & Sensor:
1080P Sony IMX307 CMOS-High-Detail Inspection & Monitoring
Frame Rate:
30 FPS-Smooth, Real-Time Video
Video Output:
HDMI / HD-SDI / CVBS (Simultaneous)-Maximum Flexibility For Monitors & DVRs
Key Features:
120dB WDR, Sens-Up (x32), 3D-DNR-Challenging & Variable Lighting Conditions
Lens Mount:
Standard CS-mount-Wide Lens Compatibility
Control:
Comprehensive OSD Menu-Precise Image Tuning For Machine Vision
Primary Use Case:
Machine Vision, Industrial Monitoring, QA-Engineers, Integrators, OEMs
Highlight:

120dB WDR Industrial Machine Vision Camera

,

1080P Industrial Machine Vision Camera

,

Sony Sensor vision inspection cameras

Product Description

Professional LN-320 industrial camera! Features Sony IMX307 sensor, 1080P@30fps, 120dB WDR, Sens-Up. Outputs: HDMI, HD-SDI, CVBS. Perfect for machine vision & industrial monitoring.

LN-320 Industrial Camera: Multi-Output HD Vision for Demanding Applications
Crystal-Clear 1080P Imaging with Flexible Outputs for Industrial Integration

Introducing the Lntech LN-320, a robust and versatile industrial-grade camera designed for machine vision, quality control, and high-definition monitoring. At its core is a premium 1/2.8" Sony IMX307 CMOS sensor, delivering sharp and detailed 1080p Full HD video at 30 frames per second. Its standout feature is triple video output (HDMI, HD-SDI, and CVBS), providing maximum compatibility with monitors, recorders, and processing equipment. Equipped with advanced 120dB Wide Dynamic Range (WDR) and Sens-Up technology, it excels in challenging industrial lighting conditions. Housed in a compact, durable metal case, the LN-320 is the ideal solution for automation, robotics, and secure surveillance.

Why Choose The LN-320 Industrial Camera?

1. Superior 1080P Image Quality with Sony Sensor

Capture every critical detail. The Sony IMX307 STARVIS sensor is renowned for its excellent sensitivity and image quality, providing 2.13 megapixel resolution for precise inspection and accurate monitoring in industrial environments.

2. Unmatched Output Flexibility

Connect to anything. With simultaneous HDMI, HD-SDI, and CVBS outputs, the LN-320 offers unparalleled integration flexibility. Use the pristine digital HDMI signal for a local monitor, the long-distance HD-SDI feed for a recorder, and the analog CVBS signal for legacy equipment—all at the same time.

3. Conquer Extreme Industrial Lighting

No more washed-out images or dark shadows. The powerful 120dB Wide Dynamic Range (WDR) perfectly balances scenes with both very bright and very dark areas, which is common in factories with windows or bright lights. Sens-Up (up to x32) enhances sensitivity in low-light scenarios without motion blur.

4. Precise Image Control for Machine Vision

Tailor the image to your exact application needs. The comprehensive On-Screen Display (OSD) menu provides granular control over settings like shutter speed (1/60s ~ 1/30,000s), AGC, sharpness, HLC/BLC, and 3D-DNR. This level of control is essential for optimizing the camera for specific machine vision tasks.

5. Built for Reliability in Tough Environments

Housed in a compact metal enclosure measuring just 133.4 x 69 x 64.5 mm, the LN-320 is built to withstand the rigors of an industrial setting. Its robust design ensures stable performance for continuous operation.

Complete Technical Specifications

Parameter Specification
Model LN-320
Image Sensor 1/2.8" Sony IMX307 CMOS
Effective Pixels 1920(H) x 1080(V) / 2.13MP
Scan System Progressive
Resolution 1080P
Frame Rate 30 FPS
Video Output HDMI / HD-SDI / CVBS
Pixel Size 3.75µm
WDR 120dB
Lens Mount CS-mount
Sens-up Off, x2, x4, x8, x16, x32
Shutter Speed Auto / Manual (1/60s ~ 1/30,000s)
DNR 3D-DNR (High, Medium, Low)
BLC / HLC Yes / Yes
AGC 0-10 steps
Motion Detection Yes
Power Supply DC 12V (±10%), < 2.5W
Dimensions 133.4(L) x 69(W) x 64.5(H) mm

Order the versatile LN-320 industrial camera today! Contact us for OEM pricing and technical support.
