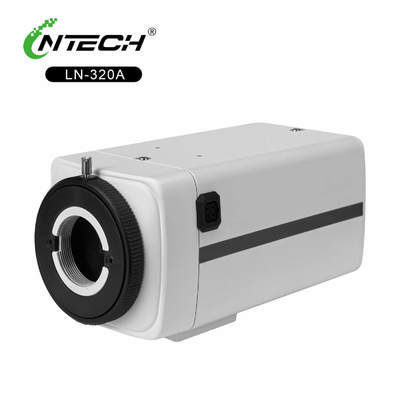

LN-320 Industrial Video Camera 1080P 120dB WDR High Performance
  • name
  • name
  • name
  • name

LN-320 Industrial Video Camera 1080P 120dB WDR High Performance

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-320
WDR Performance:
- 120dB True Wide Dynamic Range - Multi-exposure Technology - Detail Preservation In High Contrast
Imaging Core:
- Sony IMX307 Sensor (1/2.8") - 1080P @ 30fps - Progressive Scan
Output Flexibility:
- HDMI / HD-SDI / CVBS - Simultaneous Output Support
Industrial Features:
- SENS-up (32x Frame Accumulation) - HLC/BLC Compensation - 3D-DNR
Highlight:

Industrial Video Camera 120dB WDR

,

high performance Industrial Video Camera

,

Video Camera 1080P high performance

Product Description
LN-320 Industrial Camera

Model: LN-320 | Sensor: Sony IMX307 (1/2.8") | WDR: 120dB | Outputs: HDMI/HD-SDI/CVBS | Resolution: 1080P@30fps

Industrial-grade camera featuring breakthrough 120dB WDR performance, Sony IMX307 sensor, and triple output interface for machine vision applications.


1.0 Key Technical Features
Section Key Attributes
WDR Performance - 120dB True Wide Dynamic Range
- Multi-exposure technology
- Detail preservation in high contrast
Imaging Core - Sony IMX307 Sensor (1/2.8")
- 1080P @ 30fps
- Progressive Scan
Output Flexibility - HDMI / HD-SDI / CVBS
- Simultaneous output support
Industrial Features - SENS-up (32x frame accumulation)
- HLC/BLC compensation
- 3D-DNR

2.0 Technical Documentation
2.1 Overview

The LN-320 is a professional industrial camera designed for applications requiring exceptional performance in challenging lighting conditions. Its 120dB WDR capability makes it ideal for high-contrast industrial environments.

2.2 WDR Performance

  • Technology: True wide dynamic range with multi-exposure processing

  • Performance: 120dB dynamic range for extreme contrast handling

  • Applications: Welding inspection, automotive manufacturing, electronics assembly

2.3 Imaging Specifications

  • Sensor: 1/2.8-inch Sony IMX307 CMOS with 2.13MP resolution

  • Scanning: Progressive scan for motion artifact elimination

  • Low Light: SENS-up technology with up to 32x frame accumulation

  • Processing: 3D-DNR for noise reduction in low-light conditions

2.4 Output Interfaces

  • HDMI: Digital output for high-quality monitoring

  • HD-SDI: Long-distance digital transmission (up to 100m)

  • CVBS: Analog composite video output

  • Simultaneous Operation: All interfaces active concurrently


3.0 Comprehensive Specification Table
Category Parameter Specification
General Model LN-320
  Sensor 1/2.8" Sony IMX307 CMOS
  Effective Pixels 2.13MP (1845×1097)
Performance Max Resolution 1080P (1920×1080)
  Frame Rate 30fps
  WDR Performance 120dB
  Pixel Size 3.75μm
Video Output Interfaces HDMI / HD-SDI / CVBS
  Scanning Progressive
Image Processing SENS-up Off/X2/X4/X8/X16/X32
  Shutter Speed 1/60 ~ 1/30,000 sec
  DNR High/Medium/Low
  AGC 0-10 steps
Physical Dimensions 133.4×69×64.5 mm
  Lens Mount CS-mount
  Housing Industrial metal
Electrical Power DC 12V ±10%
  Consumption <2.5W

4.0 Resources

  •
