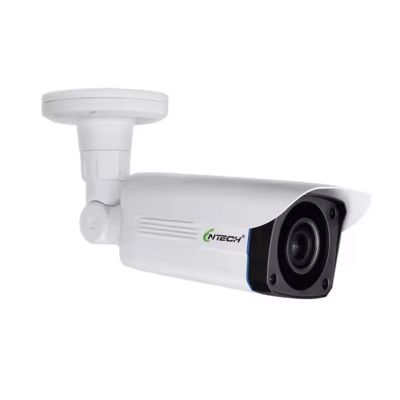

Progressive Scan 2MP Security Camera 1080p30 Outdoor Surveillance Camera Lntech LN-801

Review LN-801 specs: 2MP 1080p, Sony IMX307, 60m IR, 6-in-1 output (AHD/TVI/CVI/CVBS/EX-SDI), IP67 waterproof. Download datasheets and manuals. Ideal for outdoor surveillance.

Model: LN-801 | Sensor: Sony IMX307 | Resolution: 2MP (1080p) | IR: 60m | Rating: IP67

A high-performance outdoor bullet camera with Sony IMX307 sensor and 6-in-1 video output (AHD, TVI, CVI, CVBS, EX-SDI). Features 60m IR night vision, 120dB WDR, and IP67 weatherproofing.

The Lntech LN-801 is a professional 2-megapixel outdoor bullet camera designed for continuous surveillance in various environments. It captures clear 1080p Full HD video using a high-quality Sony IMX307 Starvis sensor, renowned for its superior low-light performance. Its standout feature is support for six different video output formats (AHD, TVI, CVI, CVBS, EX-SDI), making it compatible with nearly all existing and new surveillance systems. Built with an IP67-rated metal housing, it is protected against dust and water, ensuring reliable operation outdoors.

This camera provides multiple video output signals on a single BNC connector:

• Analog HD: AHD, TVI, CVI (1080p)

• Standard Definition: CVBS (960H)

• Digital: EX-SDI

The desired output format is selected using a dip-switch on the cable harness, providing ultimate flexibility for system integrators.

• Superior Low-Light Imaging: Achieves 0.00017Lux color sensitivity with DSS technology, providing usable video in near-total darkness.

• Long-Range Infrared: Powerful IR LEDs illuminate scenes up to 60 meters (197 feet) in complete darkness with automatic IR-cut filter.

• Enhanced Image Processing: 120dB WDR ensures details are visible in high-contrast scenes. The Defog feature improves clarity in foggy or hazy conditions. 3D-DNR reduces noise for cleaner low-light footage.

• Weather Resistance: The IP67 rating guarantees protection against dust and water jets, making it suitable for harsh outdoor environments.

• Robust Design: The solid metal housing and bracket provide durability and resistance to vandalism.

• Temperature Resilience: Operates reliably in extreme temperatures from -20°C to +60°C (-4°F to 140°F).

• Setup: Standard mounting bracket allows for easy installation on walls and ceilings.

• Configuration: A comprehensive On-Screen Display (OSD) menu is accessible via the coaxial cable from a compatible DVR, allowing adjustment of all image and system settings.

Looking for a reliable outdoor camera? The LN-801 is the solution. Contact us for quotes.
