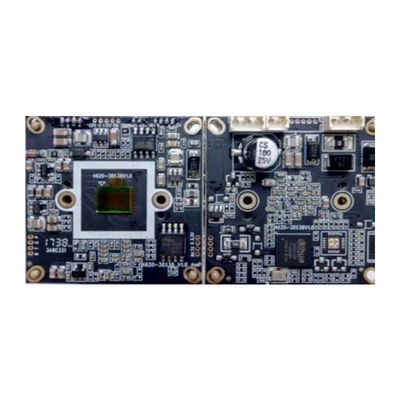

4MP Security SDI Camera Module Digital Camera Module 4620-OV50C(DH5020M+OV4689)_38X38mm

Introducing our high-performance 38X38mm 4MP Camera Module (Model: 4620-OV50C, DH5020M+OV4689), a professional-grade security camera module 38X38mm designed for integration into various surveillance systems. Manufactured in our state-of-the-art facility in China, this digital camera module 38X38mm delivers exceptional image quality, reliable performance, and ultra-compact form factor, making it ideal for space-constrained security applications.

Built around the premium 1/3" OMNIVISION OV4689 CMOS sensor, this 4MP camera module captures crisp, detailed footage at 1440P resolution with smooth 30fps frame rates. Its advanced digital signal processing (DSP) ensures excellent low-light performance, allowing clear imaging even in near-dark conditions. The module features HD-CVI analog high-definition output via standard 75Ω BNC connectors, ensuring long-distance transmission with minimal signal loss.

As a PCBA (Printed Circuit Board Assembly) 半成品 (semi-finished product), this camera module provides maximum flexibility for system integrators, OEMs, and ODMs to customize and integrate into their own security camera enclosures and systems.

• High-Resolution 4MP Imaging: Delivers 2688*1520 (4.08MP) resolution with 1440P digital output at 30/15fps for sharp, detailed surveillance footage
• Exceptional Low-Light Performance: Features DSS (Digital Slow Shutter) technology, achieving 0.01LUX color sensitivity and 0.0017LUX black-and-white sensitivity for clear night vision
• Ultra-Compact 38*38mm Form Factor: Perfect for integration into small-sized security cameras, dome cameras, bullet cameras, and other space-limited applications
• HD-CVI Analog High-Definition Output: Supports 1440P video transmission over standard 75Ω coaxial cables up to long distances
• Comprehensive Image Adjustment: Offers adjustable brightness (0-20 steps), contrast (0-16 steps), sharpness (0-16 steps), and digital noise reduction (DNR 0-16 steps)
• Flexible Day/Night Operation: Supports internal automatic, external control, color, and black-and-white modes for 24/7 surveillance
• Auto/Manual White Balance: Ensures accurate color reproduction under varying lighting conditions
• Multi-Language Support: Includes Chinese, English, Japanese, Korean, Italian, and French language options
• Low Power Consumption: Operates on DC12V ±10% with maximum power consumption less than 1.0W, energy-efficient for continuous operation
• Factory-Direct Quality: Manufactured in our certified facility with strict quality control processes, ensuring reliable and consistent performance
