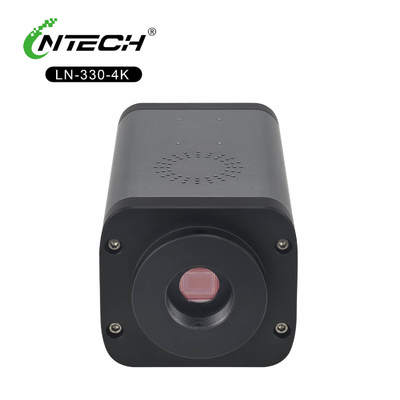

LN330-4K30F 4K Video Camera All In One HD Camera 3840x2160 Broadcast Grade

Products

LN330-4K30F 4K Video Camera All In One HD Camera 3840x2160 Broadcast Grade

MOQ:	1
Standard Packaging:	Carton
Delivery Period:	7-15 working days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Lntech

Model Number

LN-330

Imaging Core:

1/1.8" 8.29MP CMOS Sensor

Max Resolution:

3840x2160 (4K) @ 30fps

Video Outputs:

3G-SDI (EX-SDI/HD-SDI), HDMI

Sensitivity:

0.33 Lux (B/W Mode)

Lens Mount:

C/CS-mount (Auto Iris Supported)

Key Control:

OSD Menu, RS-485 Protocol

Critical Functions:

Day/Night (ICR), WDR, NR, Privacy Masking

Mechanical:

140x73x73mm, 1/4" Mount, 0.42kg

Highlight:

Broadcast Grade 4K Video Camera

All In One HD Camera 3840x2160

3840x2160 4K Video Camera

Product Description

Review LN330-4K30F 4K camera specifications: 8.29MP, 4K/30fps, 3G-SDI/HDMI outputs, 0.33Lux, C/CS mount. Download datasheets and user manuals.

LN330-4K30F 4K Camera

Model: LN330-4K30F | Sensor: 1/1.8" 8.29MP CMOS | Output: 4K30/1080p60 | Mount: C/CS

A broadcast-grade 4K camera with dual 3G-SDI and HDMI outputs, designed for professional video production, live streaming, and high-resolution surveillance.

1.0 Key Features at a Glance

Section	Key Attributes
Imaging	- 1/1.8" 8.29MP CMOS Sensor - 4K (2160p) @ 30fps Resolution - 0.33 Lux Low Light Sensitivity (B/W) - Auto ICR Day/Night
Output	- Dual Output: 3G-SDI & HDMI - EX-SDI (4K) / HD-SDI (1080p) - 1080p @ 60fps High-Speed Option
Lens & Control	- C/CS-Mount (Auto Iris Support) - RS-485 Control Interface - Comprehensive OSD Menu - Multi-Language Support
Construction	- Compact Metal Housing - 1/4" Standard Tripod Mount - Wide Operating Temperature: -20°C ~ +80°C - Low Power Consumption: ~7.4W

2.0 Detailed Product Information

2.1 Description

The LN330-4K30F is a high-performance 4K camera engineered for applications demanding superior image quality and reliability. It captures ultra-sharp video at 4K resolution (3840x2160) and provides versatile output options for seamless integration into professional environments, including broadcast studios, live event production, and critical monitoring systems.

2.2 Video Output & Compatibility

This camera provides two simultaneous video outputs:

3G-SDI Output: Provides a broadcast-standard, long-distance signal. Supports EX-SDI mode for 4K/30p and HD-SDI mode for 1080p/50/60p.
HDMI Output: Provides a digital output for direct connection to monitors, recorders, or streaming encoders. Output resolution matches the SDI setting.
This dual-output design ensures compatibility with virtually all modern video equipment.

2.3 Image Performance

Resolution & Detail: The 8.29-megapixel sensor ensures native 4K capture with exceptional detail and clarity.
Low Light Capability: With a minimum illumination of 0.33 Lux in black-and-white mode (with ICR filter removed), the camera delivers usable images in challenging lighting conditions.
Image Control: A full suite of adjustments is available, including Exposure (AGC, BLC, Shutter), White Balance, Noise Reduction, and Detail Enhancement.

2.4 System Integration

Lens Compatibility: The standard C/CS-mount allows for the use of a wide range of professional-quality lenses. Auto Iris support is included for automatic exposure control with compatible lenses.
Remote Control: The RS-485 interface enables remote control of camera functions (e.g., OSD menu, image settings) using standard protocols.
Configuration: The On-Screen Display (OSD) menu, accessible via front-panel buttons, allows for detailed configuration. Support for multiple languages (CN, EN, JP, KR) simplifies international use.

3.0 Comprehensive Specification Table

Group	Parameter	Specification
General	Model	LN330-4K30F
Sensor	Type	1/1.8" CMOS
	Effective Pixels	8.29 MP (3840x2160)
Video	Max Resolution	3840 x 2160 (4K)
	Frame Rate	30fps (4K), 50/60fps (1080p)
	Video Output	3G-SDI, HDMI
	Output Format	EX-SDI (4K), HD-SDI (1080p)
Lens	Mount	C/CS-mount
	Iris	Auto Iris / Fixed
Performance	Min. Illumination	0.59 lux (Color), 0.33 lux (B/W)
	Day/Night	Auto (ICR), Color, B/W, External
Image	Exposure Control	AGC, BLC, E-Shutter
	White Balance	Auto, Manual
	Noise Reduction	Yes (Multi-level)
	Features	Privacy Mask, Mirror, Flip, Zoom
Interface	Control	RS-485
	OSD Language	Chinese, English, Japanese, Korean
Physical	Power Supply	DC 12V ±10%
	Power Consumption	620 mA (Typical)
	Operating Temp.	-20°C ~ +80°C
	Dimensions	140 x 73 x 73 mm
	Weight	0.42 kg
	Mounting	1/4"-20 UNC

Contact us for OEM and bulk order inquiries.
