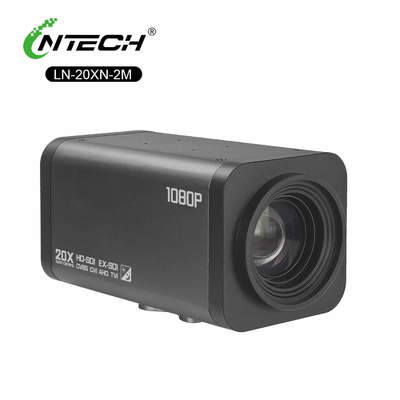

20x Zoom All In One HD SDI Camera with Multi Format Output and Low Light Performance for Surveillance
  • name
  • name
  • name
  • name

20x Zoom All In One HD SDI Camera with Multi Format Output and Low Light Performance for Surveillance

MOQ: 1
Standard Packaging: Carton
Delivery Period: 7-15 working days
Payment Method: T/T
Supply Capacity: 2500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Lntech
Certification
CE ISO
Model Number
LN-20XN
Digital Zoom:
20x (5.9–94.4mm)
Image Sensor:
1/2.8" CMOS, 2.13 MP
Video Output:
HD-SDI, EX-SDI, TVI, AHD, CVI, CVBS
Low Light Performance:
0.001 Lux (B&W)
Key Features:
3D-DNR, WDR, Privacy Mask, Digital Zoom
Typical Applications:
Surveillance, Long-Range Monitoring, OEM Integration
Highlight:

HD Camera module Multi Format

,

20x Zoom HD Camera module

,

OEM security Camera module

Product Description
LN-20XN-200W (20x Zoom) Technical Overview
High-Zoom Multi-Format SDI Camera Module for Surveillance and Monitoring

The LN-20XN-200W is an advanced camera module incorporating a 20x optical zoom lens and a 1/2.8" CMOS sensor capable of 2.13MP resolution. It supports a wide range of video outputs including HD-SDI, TVI, AHD, CVI, and CVBS, making it compatible with diverse recording and monitoring systems. Features such as 3D-DNR, digital slow shutter, and wide dynamic range ensure high image quality in various lighting environments. With motorized zoom and focus, low power consumption, and a compact form factor, it is suited for integration into security, industrial, and broadcast systems.

Core Functional Summary
Attribute Description
Optical Zoom 20x (5.9–94.4mm)
Image Sensor 1/2.8" CMOS, 2.13 MP
Video Output HD-SDI, EX-SDI, TVI, AHD, CVI, CVBS
Low Light Performance 0.001 lux (B&W)
Key Features 3D-DNR, WDR, Privacy Mask, Digital Zoom
Typical Applications Surveillance, Long-Range Monitoring, OEM Integration
In-Depth Technical Analysis

1. Optical Performance
The 20x motorized zoom lens provides a focal range from 5.9mm (wide) to 94.4mm (tele), enabling detailed observation of distant subjects. The auto-iris control (F1.8 to F3.9) optimizes exposure across zoom settings.

2. Multi-Format Output
The camera supports six output formats, allowing seamless integration into existing infrastructure without format converters. This includes:

  • HD-SDI/EX-SDI for broadcast and professional monitoring

  • TVI/AHD/CVI for modern HD analog systems

  • CVBS for legacy analog equipment

3. Enhanced Image Processing

  • 3D-DNR reduces noise without compromising motion clarity.

  • Digital Slow Shutter improves low-light response by accumulating frames.

  • Wide Dynamic Range manages high-contrast scenes for balanced exposure.

4. Physical and Environmental Design
The compact 60*60*115 mm housing facilitates discreet installation. Operating temperature range of -10°C to +50°C ensures reliability in indoor and sheltered outdoor environments.

Detailed Technical Specifications Table
Category Parameter Detail
General Model LN-20XN-200W

Sensor 1/2.8" CMOS

Effective Pixels 2.13 MP
Optical Zoom 20x Optical

Focal Length 5.9–94.4 mm

Aperture F1.8 (Wide) – F3.9 (Tele)

FOV 62.0° (Wide) – 4.1° (Tele)
Video Output Formats HD-SDI, EX-SDI, TVI, AHD, CVI, CVBS

Resolutions 1080p, 720p

Frame Rates 30/25/60/50fps
Image Min. Illumination 0.001 lux (B&W)

DNR 3D-DNR (Auto/Off/L/M/H)

WDR Supported

Shutter Speed 1/30–1/60,000 s
Electrical Power DC 12V ±10%

Current 130 mA (typical)
Mechanical Dimensions 60*60*115 mm

Weight 0.42 kg

Operating Temp -10°C to +50°C
Tags:

HD Camera module,

Broadcast video Camera,

video Camera Module
