LN-20X Auto Zoom Camera Module
Model: LN-20X | Zoom: 20x Optical | Resolution: 1080p | Output: 6-in-1

A high-definition auto zoom camera module with 20x optical zoom and 6-in-1 video output (HD-SDI, EX-SDI, AHD, TVI, CVI, CVBS). Features Sony sensor and advanced image processing.

The Lntech LN-20X is a versatile auto zoom camera module integrating a high-quality Sony 1/2.8-inch CMOS sensor and a powerful 20x optical zoom lens. It delivers sharp 1080p Full HD video at 30 frames per second. Its defining feature is support for six video output formats (HD-SDI, EX-SDI, AHD, TVI, CVI, CVBS), making it compatible with a vast array of recording equipment. Advanced image processing features like WDR, HLI, and 3D-DNR ensure optimal performance in challenging and variable lighting conditions, suitable for professional surveillance applications requiring detailed long-range observation.

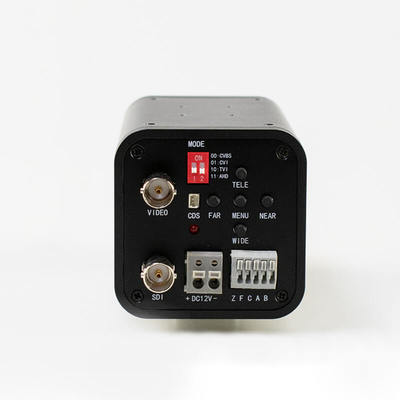

This module provides multiple video output signals, configurable to match the connected recorder:

• Digital Serial: HD-SDI, EX-SDI

• Analog High-Definition: AHD, TVI, CVI

• Analog Standard-Definition: CVBS
  The desired output is selected via a hardware switch or OSD menu, offering maximum installation flexibility.

• High Magnification Zoom: The 20x motorized optical zoom allows for detailed inspection of distant objects and scenes, with a focal length range from 5.7mm (wide) to 102.6mm (tele).

• Superior Image Quality: The Sony sensor provides excellent color reproduction and detail. Advanced processing includes 120dB WDR for high-contrast scenes, HLI to manage strong light sources, and 3D-DNR for cleaner low-light video.

• Low Light Capability: Achieves a minimum illumination of 0.24 lux in color mode, ensuring usable imagery in a variety of lighting environments.

• Comprehensive Control: All camera functions, including zoom, focus, image parameters, and privacy masking, are managed through an intuitive On-Screen Display (OSD) menu system.

• Reliable Operation: The camera operates on a 12V DC power supply (with a wide 10V-16V input range) and is designed for reliable performance within an operating temperature of -10°C to +50°C.

For long-range surveillance clarity, choose the LN-20XN-200W. Contact us for OEM inquiries.
