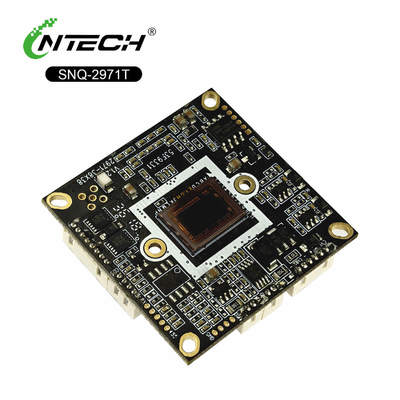

SNQ2971T 2MP SDI Camera Module with 0.00008 Lux Low Light Sensitivity 120dB WDR and 6-in-1 Video Output

Model: SNQ2971T | Platform: EN771T + IMX307 or IMX327 | Version: V1.2 | Size: 38x38mm

A high-definition, starlight-level camera module with auto-focus and selectable 6-in-1 video output (AHD, TVI, CVI, CVBS, EX-SDI). Choose your sensor for tailored performance.

The SNQ2971T is a self-contained camera core module based on the EN771T processing platform. It offers a choice between two high-quality Sony IMX307 or IMX327 sensors, allowing for customization based on performance and cost requirements. It is engineered to provide outstanding image quality in a wide range of lighting conditions, from bright sunlight to near-total darkness. Its selectable video output (AHD, TVI, CVI, CVBS, EX-SDI) makes it universally compatible with modern HD analog and digital recording systems.

This module provides five simultaneous video output options on a single connector:

• Analog HD: AHD, TVI, CVI

• Standard Definition: CVBS

• Digital: EX-SDI
  The desired output format is typically selected via a dip-switch on the connected cable, allowing for flexible configuration to match the connected DVR.

• Superior Low-Light Capability: Captures clear video in extremely low-light environments (0.00008 Lux) using advanced sensor technology and image processing (Sens-Up).

• High Dynamic Range: Reveals detail in both shadows and highlights with 120dB WDR.

• Enhanced Visibility: The DEFOG feature digitally processes the image to penetrate haze, fog, and light rain.

• Reduced Noise: 3D-DNR effectively minimizes noise in low-light footage.

The module includes drivers for motorized zoom and focus lenses. The auto-focus system can be controlled:

• Automatically: The module continuously adjusts focus.

• Manually: Via OSD menu or coaxial control buttons on a DVR.

• One-Push: Initiates a single autofocus cycle.

• Dimensions: 38mm x 38mm.

• Mounting: Uses standard M2 screws.

• Connectors: Clearly labeled ports for power, video output, IR-CUT, lens control, and external I/O.

• Configuration: All settings are managed through a rich On-Screen Display (OSD) menu, controllable via the coaxial cable from a compatible DVR.

• Download Datasheet (PDF)

• Download Wiring Guide (PDF)

• Download OSD Menu Manual (PDF)

Specify your sensor preference (IMX307 or IMX327) when ordering. Contact us for OEM pricing and technical support.
